Two Piece Connector
The Two Piece connector is a plug and receptacle mating connector.
It has a floating function, which has 2 contacts that securely mates for high contact reliability.
The line-up comes in 3 to 6 pins.
- Floating Structure
- Application Example
Feature
High reliability connector with 2-point contacts per terminal. | |
Floating structure | Increased resistance to contact interruption due to an impact. |
---|---|
High durability | 2,000 electrical mating cycles. |
Line up
Number of pos | 3 – 6 Pin |
---|---|
Pitch | 2.5mm and 3.0mm |

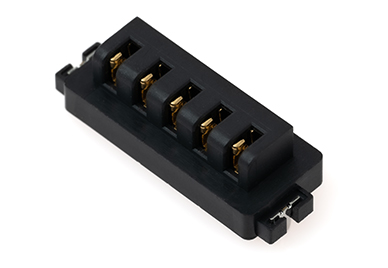

Two Piece Connector
Waterproof Blade & Receptacle Connectors
Yokowo has developed Waterproof Blade & Receptacle Connectors that will be included in catalog line-up in response to the needs of the market.
Basic Specification
Rated Current | 3A(Both ends of contacts) |
---|---|
Contact Resistance | 50mΩ(MAX) |
Operational Durability | 2,000 times |
Waterproof rating | IPX7 |
- Blade
- Receptacle
Feature
Floating Structure

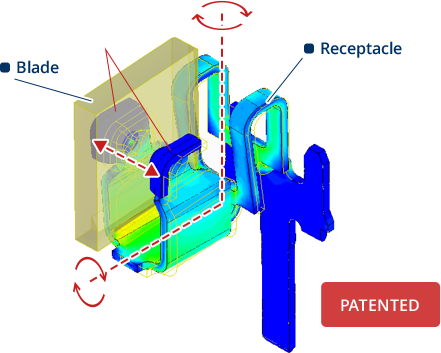

Dual beam contact
The spring follows the movements of the blade and retains contact
![Dual beam contact](/products/twopiece/images/phTwoPiece13.png)
Conventional dual beam contact

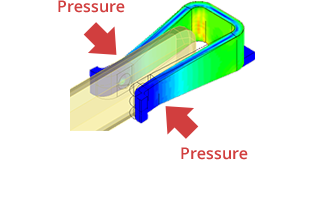

![Nom mating position](/products/twopiece/images/phTwoPiece14.png)

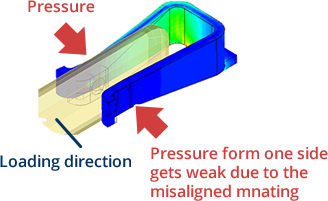

![Misaligned mating position](/products/twopiece/images/phTwoPiece15.png)

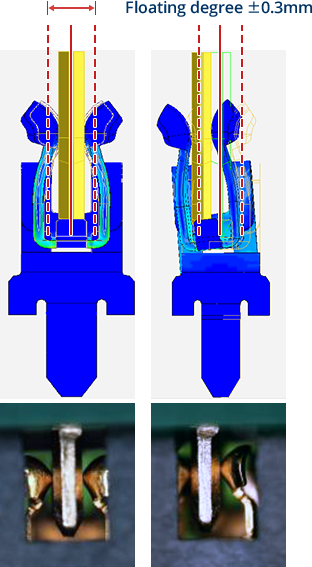

Floating function
Absorbs mating misalignment and physical shock
![Floating function](/products/twopiece/images/phTwoPiece16.png)

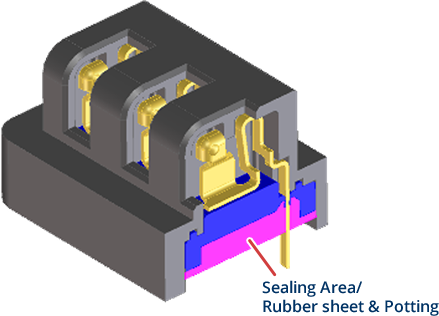

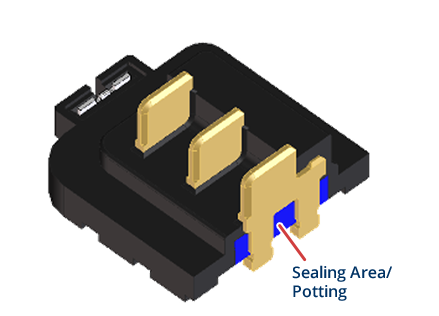

Waterproof Structure
- Blade
- Receptacle
![Isolated contact area](/products/twopiece/images/phTwoPiece19.png)
Isolated contact area
Fully partition off the contact area to prevent short circuit between adjacent contacts

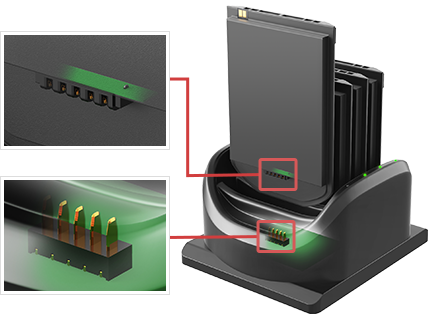

Application Example
- Battery contact
- I/O Contact
Line up
Blade | TBP-2827XS-5-30-0000 |
---|---|
Receptacle | TBR-6028XF-5-30-0000 |
