TBR-6028XF-5-30-0000

Two Piece Connector


RoHS

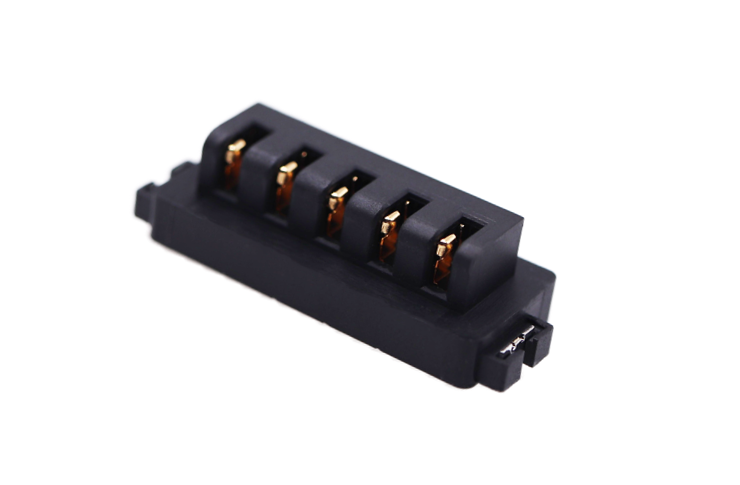

TBR-6028XF-5-30-0000Product image

Two Piece Blade Connector_5Pin_3.0mm Pitch_Through Hole_Water Proof Series

TBR-6028XF-5-30-0000

TechnologyWater ProofPlug/Rece(Male/Female)Rece
RowSingleBossW/O
Number of Pins5Pitch3.0 mm
Rated Current3ARated VoltageAC/DC 12V
Contact Resistance30mΩOperation Temp Range-40℃〜+85℃
Cycle Durability2,000timesSoldering MethodThrough Hole
Compatible ProductTBP-2827XS-5-30-0000CAPW/O
PackagingTape&ReelPackaging Quantity500pcs
Note

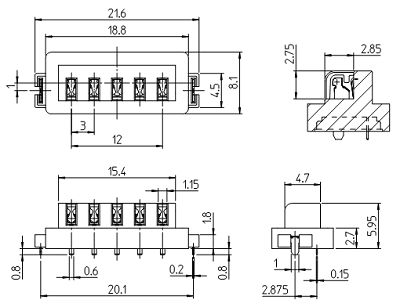

Shape to be used only as a reference and may be subject to change.
