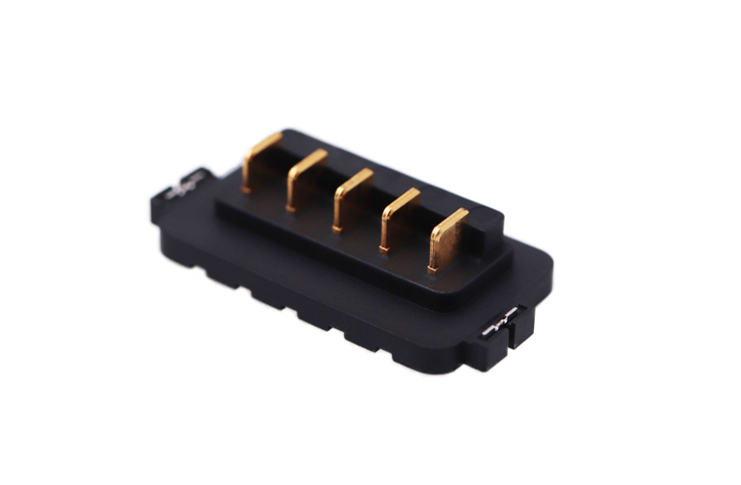

Product image
| Technology | Water Proof | Working Height | - |
|---|---|---|---|
| Plug/Rece(Male/Female) | Plug | Row | Single |
| Boss | W/O | Number of Pins | 5 |
| Pitch | 3.0 mm | Rated Current | 3 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 30mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 2,000times |
| Soldering Method | Through Hole | Compatible Product | TBR-6028XF-5-30-0000 |
| CAP | W/O | Packaging | Tape&Reel |
| Packaging Quantity | 500pcs |

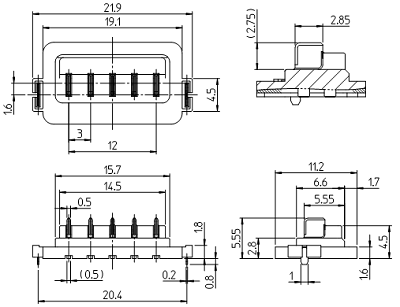

Note
Shape to be used only as a reference and may be subject to change.
