J-6220SL-10-254-0000(Low Spring Force)

SPRING CONNECTOR™/Pogo Pins


RoHS

J-6220SL-10-254-0000(Low Spring Force)Product image

Pogo Pin Connectors_10Pin_SMD Vertical Series

J-6220SL-10-254-0000(Low Spring Force)

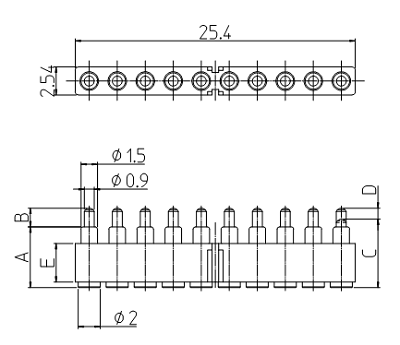

TechnologyN/AA6.2
B2C6.9
D1.3E3.5
Working Height6.9mmWorking Range(Reference)6.3mm~7.2mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins10
Pitch2.54 mmSpring Force0.3N
Rated Current0.5ARated VoltageAC/DC 12V
Contact Resistance200mΩOperation Temp Range-40℃~+85℃
Cycle Durability20,000cyclesSoldering MethodSMD_Vertical

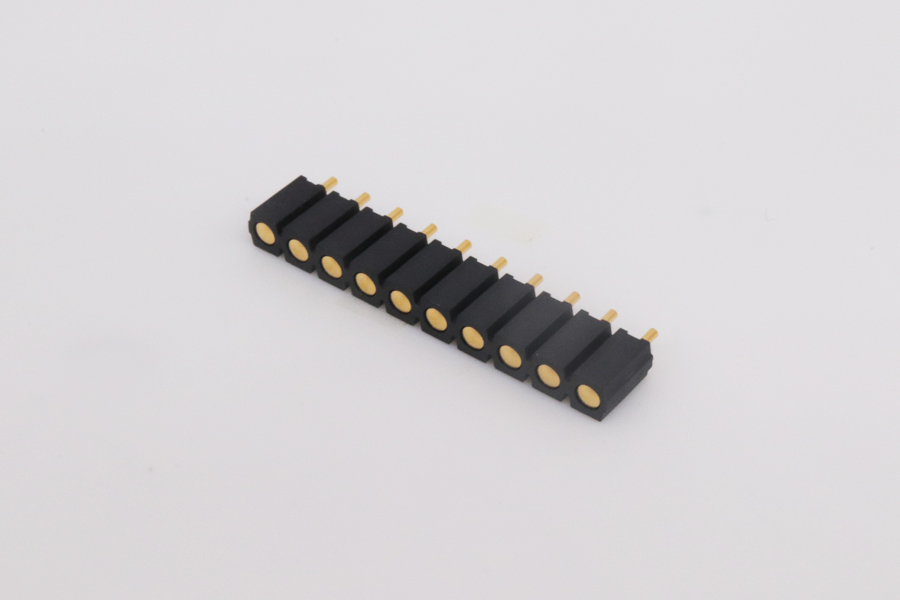

Compatible ProductJ-4000S-10-254-0000CAPW
PackagingTape&ReelPackaging Quantity500pcs
Note

Shape to be used only as a reference and may be subject to change.

Working Range(Reference)

Working Range(Reference)

Mating Pad
