S-J-2200X-10-254-0000

Mating Pad


RoHS

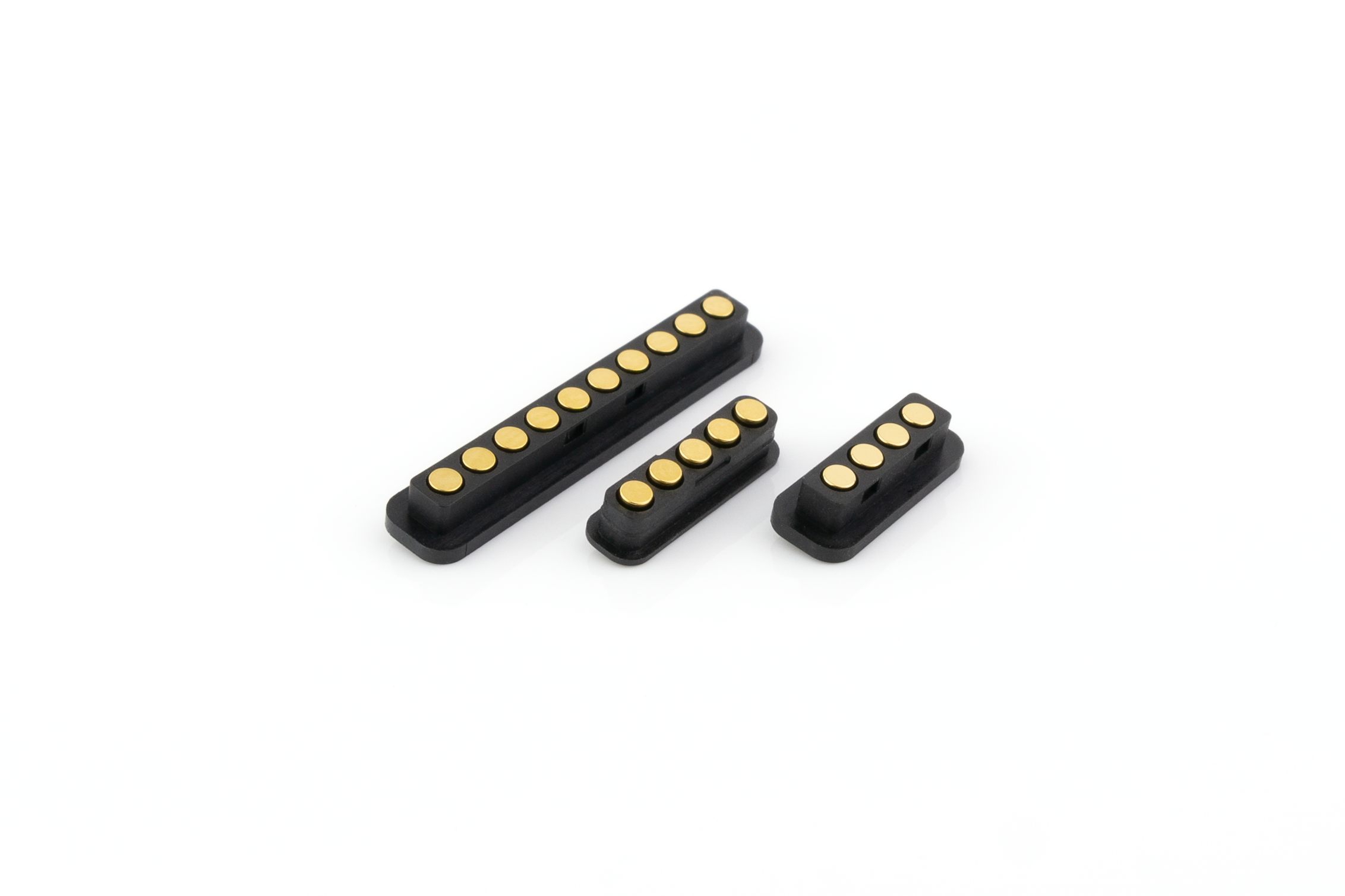

S-J-2200X-10-254-0000Product image

Mating Pad_10Pin_2.54mm Pitch_Through Hole_Water Proof Series

S-J-2200X-10-254-0000

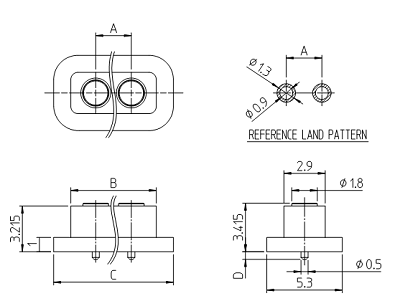

TechnologyWater ProofA22.86
B26C28.4
D0.55Working Height3.415 mm
Plug/Rece(Male/Female)FemaleRowSingle
BossW/ONumber of Pins10
Pitch2.54 mmRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Soldering MethodThrough Hole
CAPW/OPackagingTape&Reel
Packaging Quantity1,500pcs
Note
