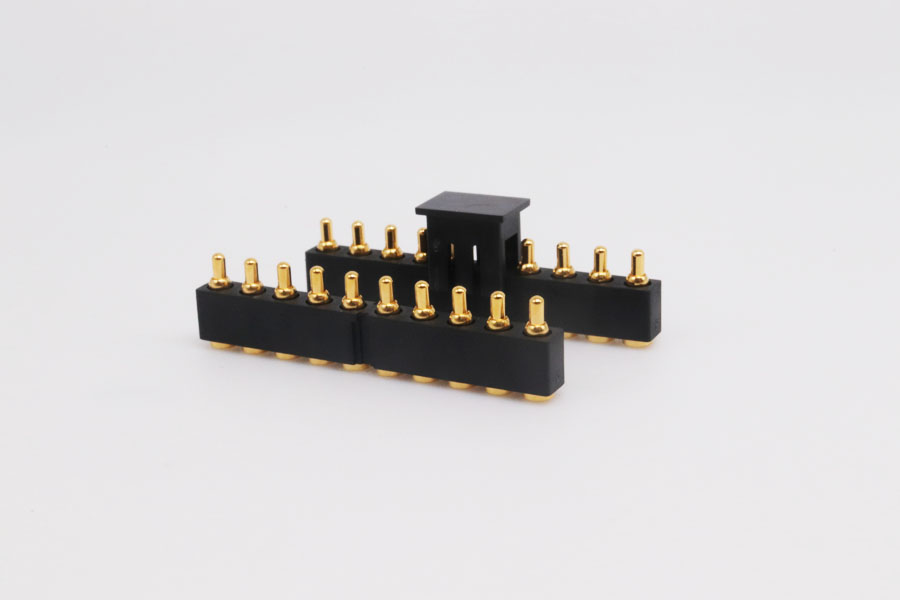

Product image
Pogo Pin Connectors_10Pin_SMD Vertical Series

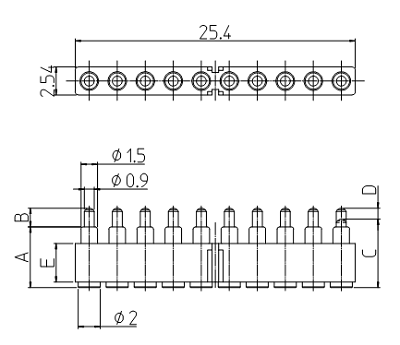

| Technology | N/A | A | 4.6 |
|---|---|---|---|
| B | 1.7 | C | 5.2 |
| D | 1.1 | E | 3.5 |
| Working Height | 5.2mm | Working Range(Reference) | 4.7mm~5.45mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 10 |
| Pitch | 2.54 mm | Spring Force | 0.3N |
| Rated Current | 0.5A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 200mΩ | Operation Temp Range | -40℃~＋85℃ |
| Cycle Durability | 20,000cycles | Soldering Method | SMD_Vertical |
| Compatible Product | J-4000S-10-254-0000 | CAP | W |
| Packaging | Tape&Reel | Packaging Quantity | 500pcs |
Note
Shape to be used only as a reference and may be subject to change.
Working Range(Reference)
