TBR-2519T-4-25-0000

Two Piece Connector


RoHS

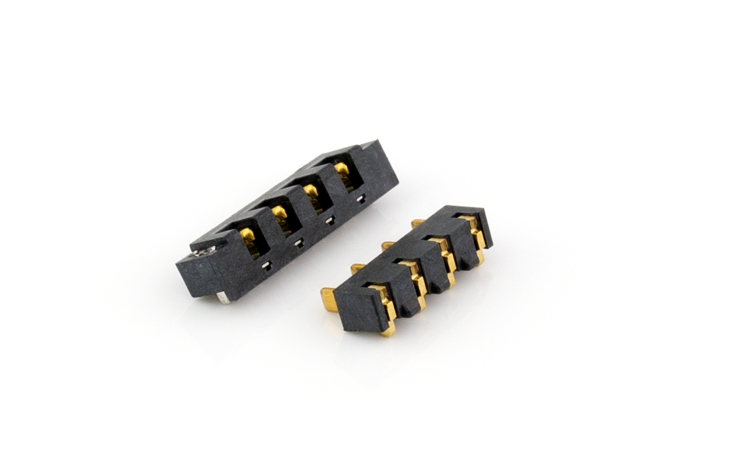

TBR-2519T-4-25-0000Product image

Two Piece Connector_4Pin_2.5mm Pitch_Through Hole Series

TBR-2519T-4-25-0000

TechnologyN/APlug/Rece(Male/Female)Rece
RowSingleBossW/O
Number of Pins4Pitch2.5 mm
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability2,000timesFloating Amount±0.3mm
Soldering MethodThrough HoleCompatible ProductTBP-1813T-4-25-0000
CAPW/O
