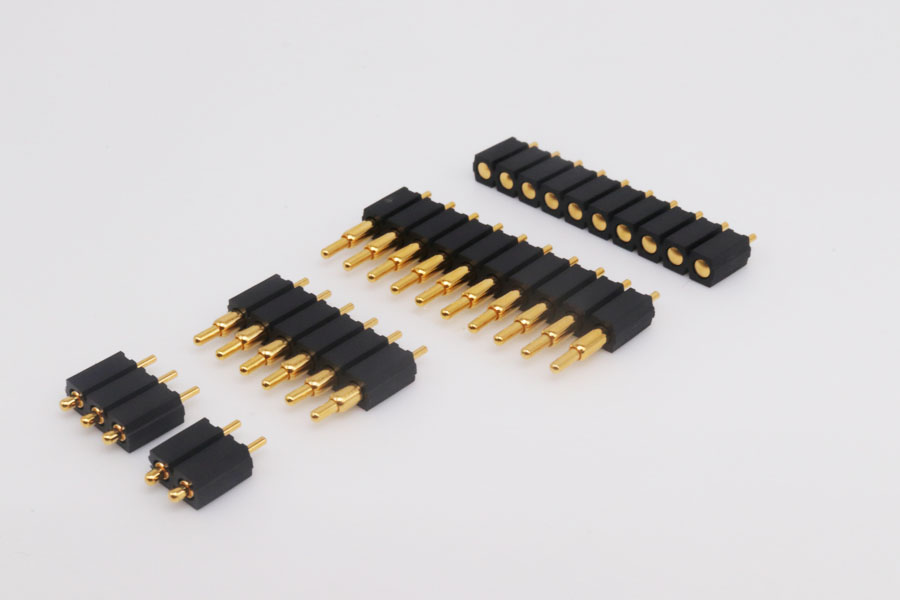

Product image
Through Hole Conncetor_10Pin_2.54mm Pitch_Through Hole Series

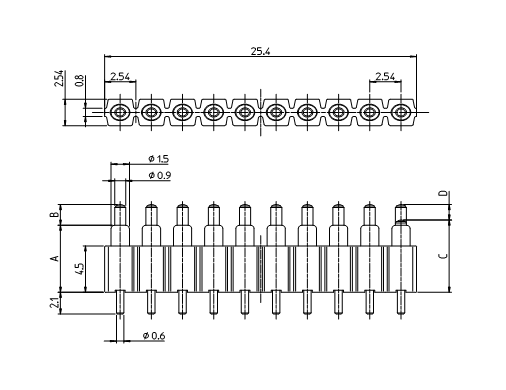

| Technology | N/A | A | 7.5 |
|---|---|---|---|
| B | 2.5 | C | 8.2 |
| D | 1.8 | E | 4.5 |
| F | 0 | Working Height | 8.2 mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 10 |
| Pitch | 2.54 mm | Spring Force | 1.0 N |
| Rated Current | 2 A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 10,000 times | Soldering Method | Through Hole |
| CAP | W/O | Packaging | Bulk |
| Packaging Quantity | 500pcs |
Note
Working Range(Reference)
