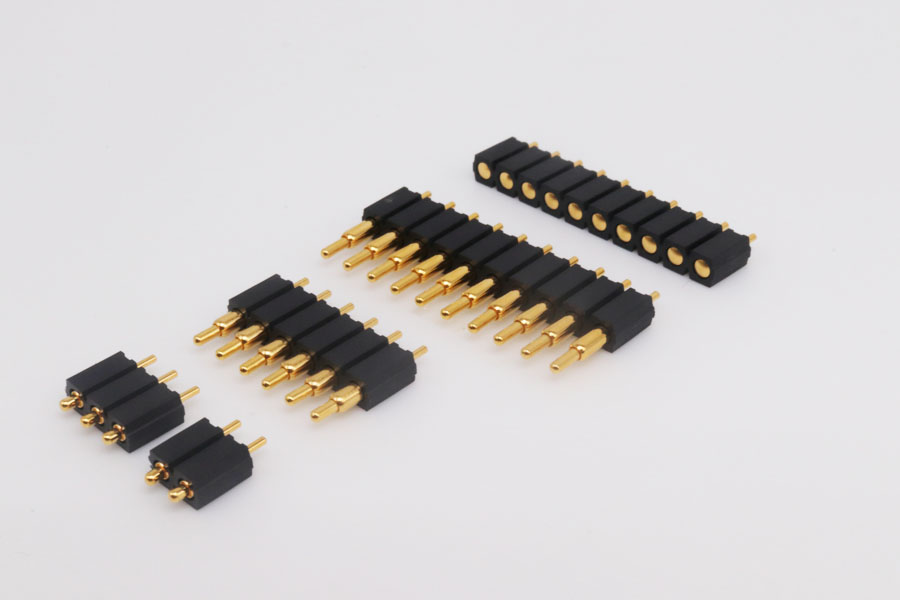

Product image
Through Hole Conncetor_10Pin_2.54mm Pitch_Through Hole Series

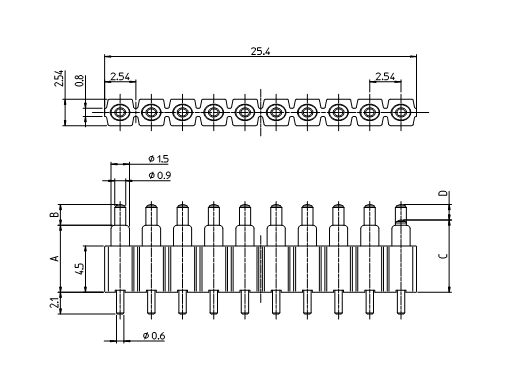

| Technology | N/A | A | 6.5 |
|---|---|---|---|
| B | 2 | C | 7 |
| D | 1.5 | E | 4.5 |
| Working Height | 7.0 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 10 | Pitch | 2.54 mm |
| Spring Force | 1.0 N | Rated Current | 2A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 10,000 times |
| Soldering Method | Through Hole | CAP | W/O |
| Packaging | Bulk | Packaging Quantity | 500pcs |
Note

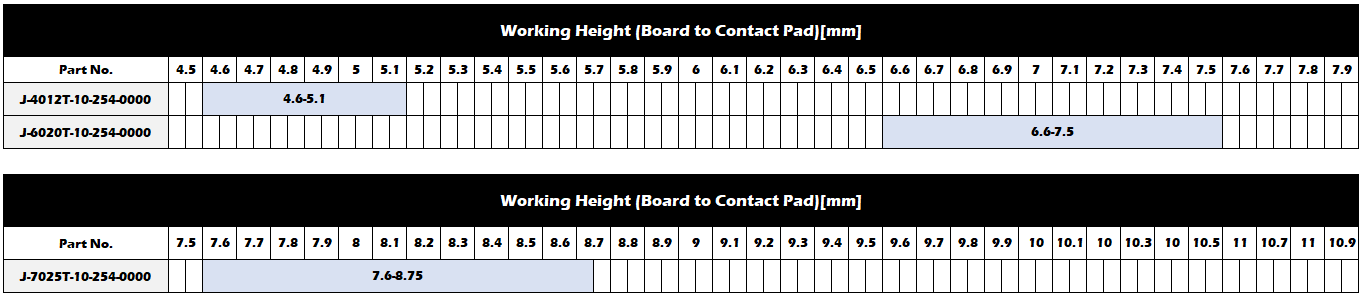

Working Range(Reference)
