J-4012T-10-254-0000

SPRING CONNECTOR™/Pogo Pins
Through Hole Connector

RoHS

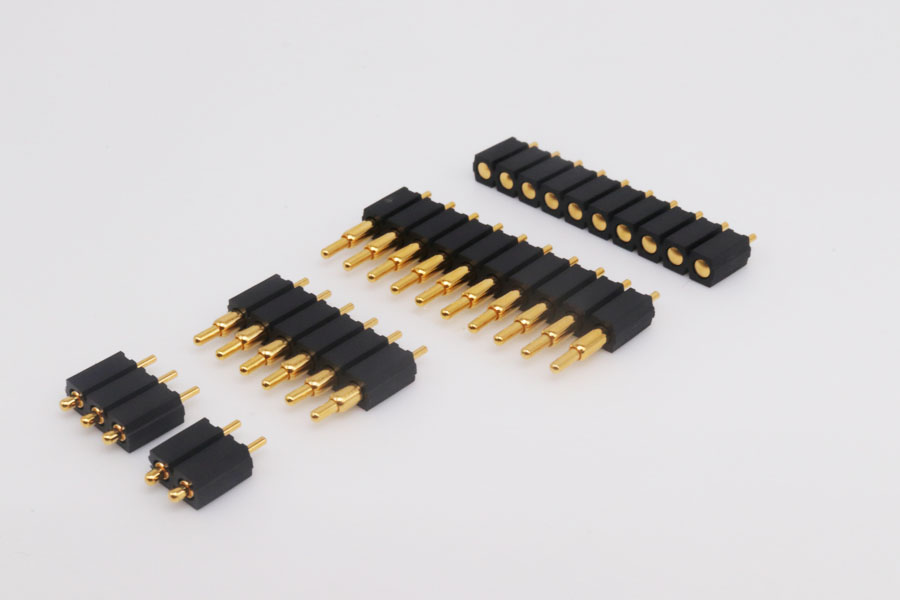

J-4012T-10-254-0000Product image

Through Hole Connector_10Pin_2.54mm Pitch_Through Hole Series

J-4012T-10-254-0000

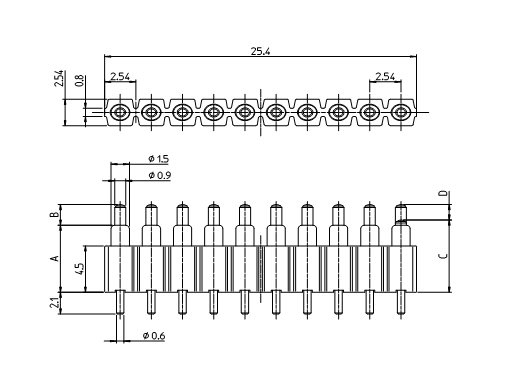

TechnologyN/AA4.5
B1.2C4.7
D1E4.5
F0Working Height4.7 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins10
Pitch2.54 mmSpring Force1.0 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability10,000 timesSoldering MethodThrough Hole
CAPW/OPackagingBulk
Packaging Quantity500pcs
Note

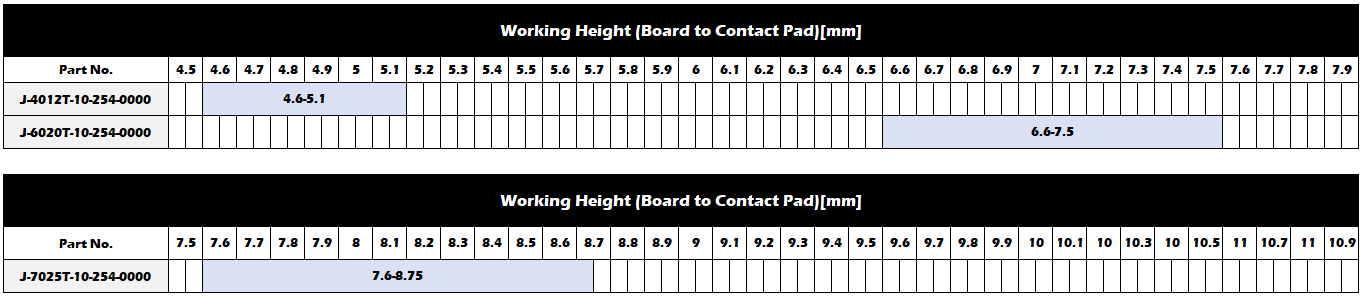

Working Range(Reference)

Working Range(Reference)

Mating Pad
