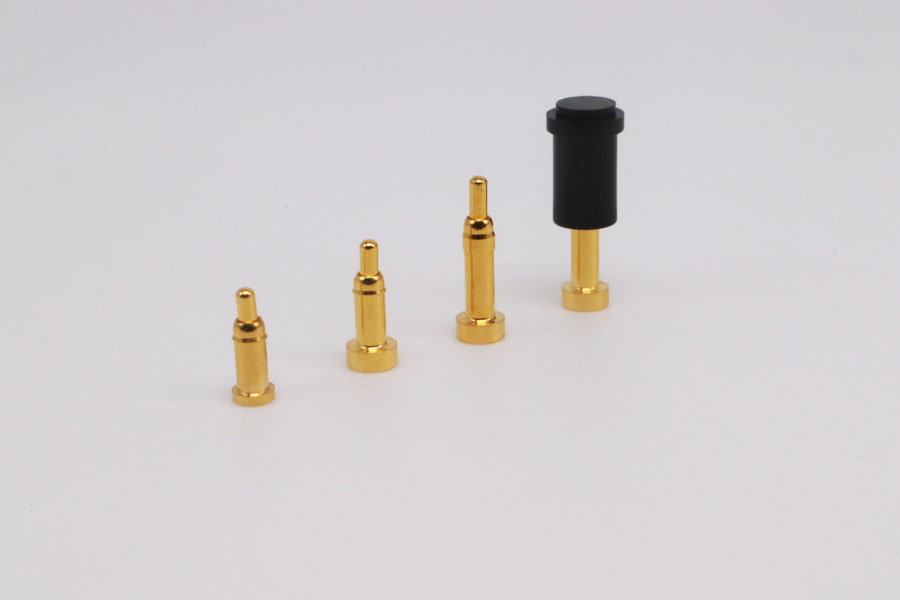

Product image
Pogo Pin Connectors_1Pin_SMD Vertical Low pressure Series Thin Plating Series

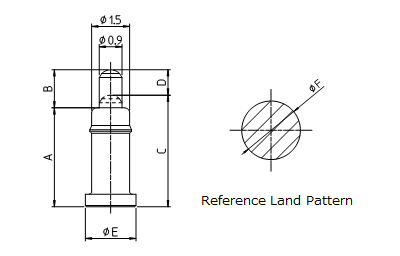

| Technology | N/A | A | 4.6 |
|---|---|---|---|
| B | 1.7 | C | 5.2 |
| D | 1.1 | E | 2.5 |
| F | 3.1 | Working Height | 5.2 mm |
| Working Range(Reference) | 4.7〜5.45 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Pitch | Other |
| Spring Force | 0.3 N | Rated Current | 0.5 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 200mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | SMD_Vertical | CAP | W |
| Packaging | Tape&Reel | Packaging Quantity | 1,000pcs |
Note
Shape to be used only as a reference and may be subject to change. Thin Plating Series

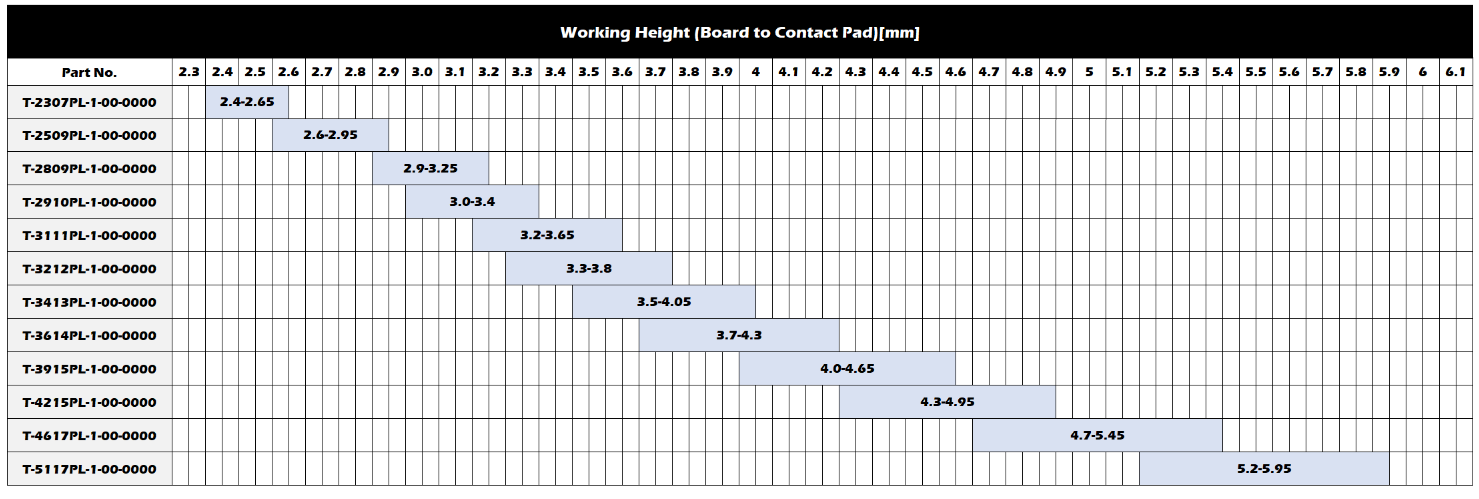

Working Range(Reference)
