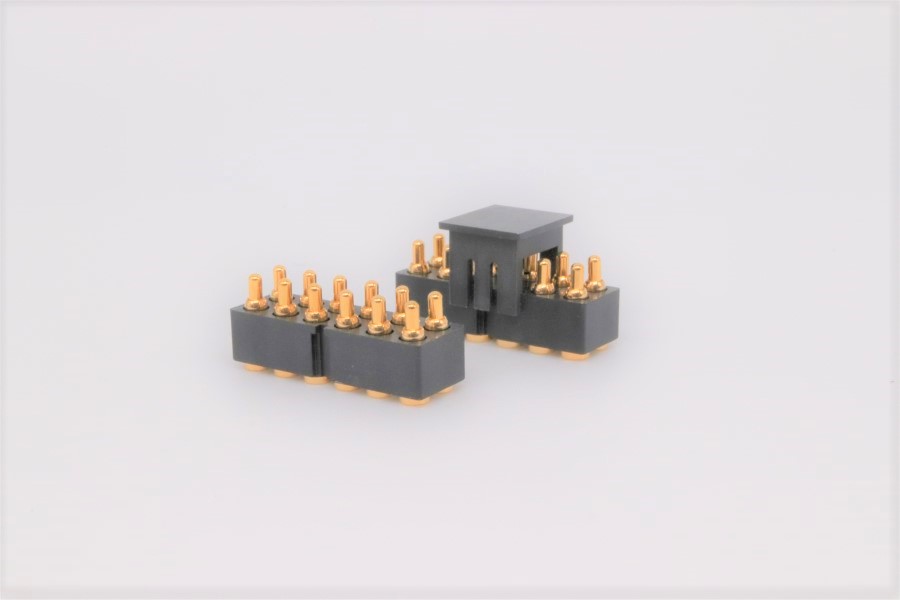

Product image
Pogo Pin Connectors_Double Row_12Pin_2.5mm Pitch_SMD Vertical Series Thin Plating Series

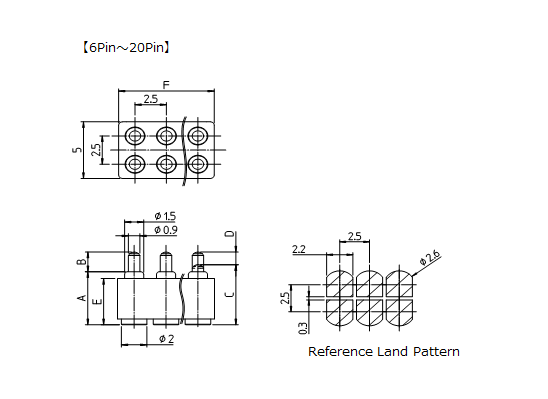

| Technology | N/A | A | 4.2 |
|---|---|---|---|
| B | 1.5 | C | 4.7 |
| D | 1 | E | 4 |
| F | 15.1 | Working Height | 4.7 mm |
| Working Range(Reference) | 4.3〜4.95 mm | Plug/Rece(Male/Female) | Male |
| Row | Double | Boss | W/O |
| Number of Pins | 12 | Pitch | 2.5 mm |
| Spring Force | 1.08 N | Rated Current | 2 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | SMD_Vertical | Compatible Product | J-4000W-12-25-0000 |
| CAP | W | Packaging | Tape&Reel |
| Packaging Quantity | 400pcs |
Note
Thin Plating Series

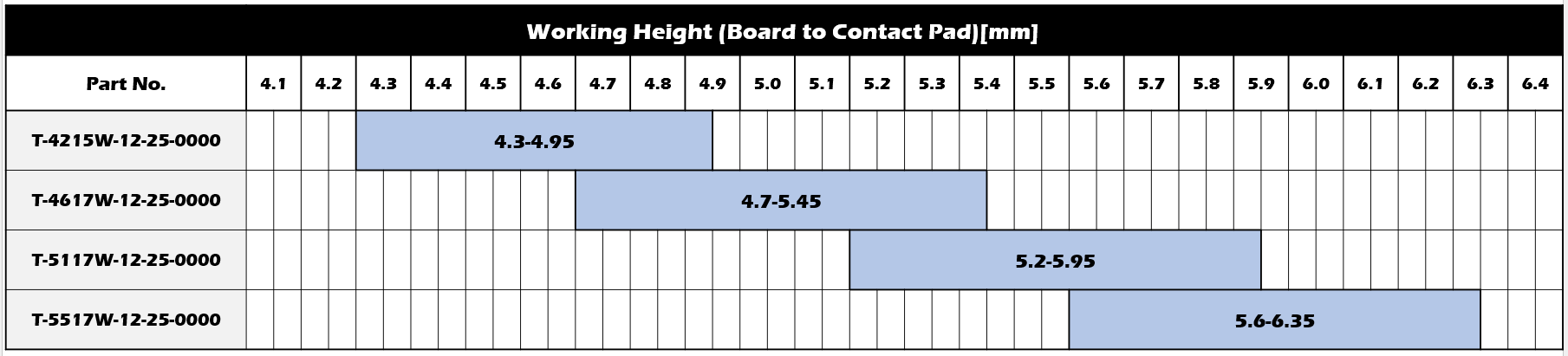

Working Range(Reference)
