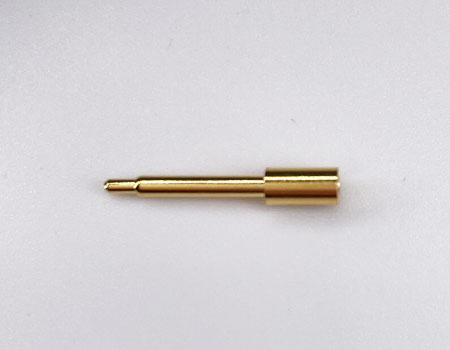

Product image

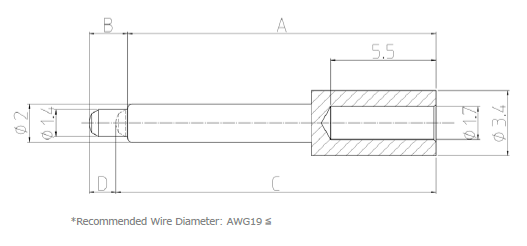

| Technology | High Current | A | 14.5 |
|---|---|---|---|
| B | 1.2 | C | 14.9 |
| D | 0.8 | Working Height | 14.9 mm |
| Working Range(Reference) | 14.6mm～15.1mm | Plug/Rece(Male/Female) | Male |
| Boss | W/O | Number of Pins | 1 |
| Spring Force | 1.28 N | Rated Current | 10 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | Cable to wire | CAP | W/O |
| Packaging | Bulk | Packaging Quantity | 5000pcs |
Note

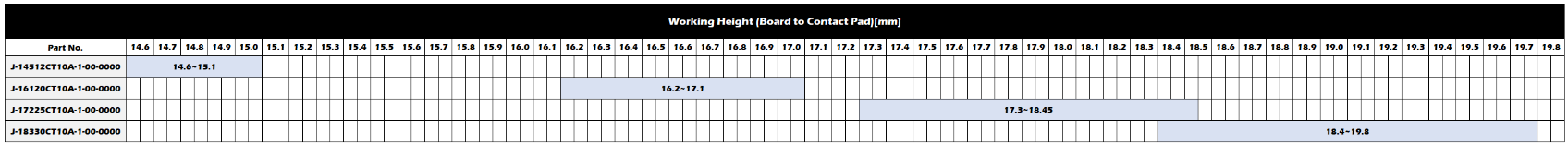

Working Range(Reference)
