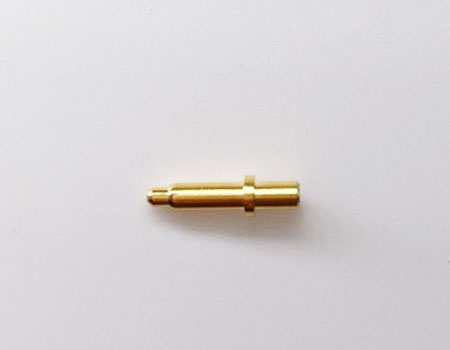

Product image

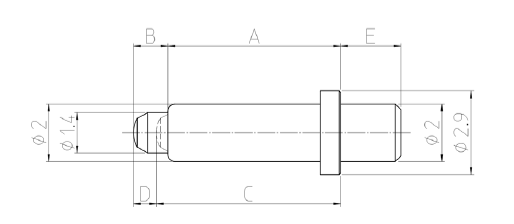

| Technology | High Current | A | 7.7 |
|---|---|---|---|
| B | 2.5 | C | 8.5 |
| D | 1.7 | E | 3.1 |
| Working Height | 8.5 mm | Working Range(Reference) | 7.8mm～8.95mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 1 |
| Spring Force | 1.28 N | Rated Current | 10A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | Through Hole | CAP | W/O |
| Packaging | Bulk | Packaging Quantity | 5000pcs |
Note

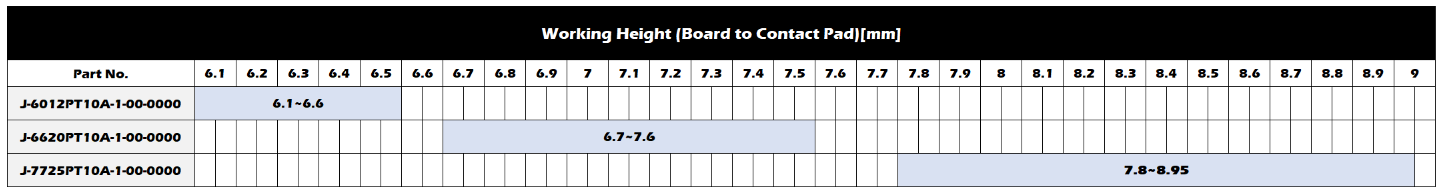

Working Range(Reference)
