Product image
| Technology | Water Proof, High Speed Transmission | Plug/Rece(Male/Female) | Male |
|---|---|---|---|
| Row | Double | Boss | W/O |
| Number of Pins | 20 | Pitch | Other |
| Spring Force | 0.8N±0.2N | Rated Current | 2A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃~＋85℃ | Cycle Durability | 20,000cycles |
| Soldering Method | Through Hole | Compatible Product | J-5200XG-24-18-0000 |
| CAP | W/O | Packaging | Tape&Reel |
| Packaging Quantity | 500pcs |
Note

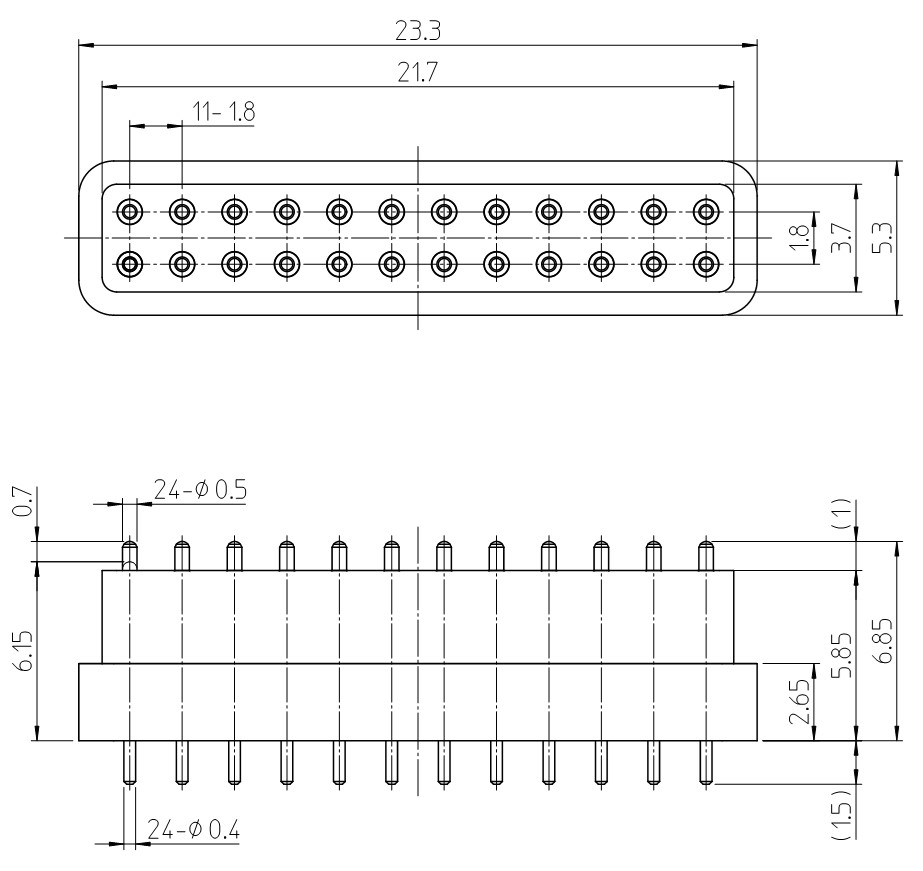

Shape to be used only as a reference and may be subject to change.
