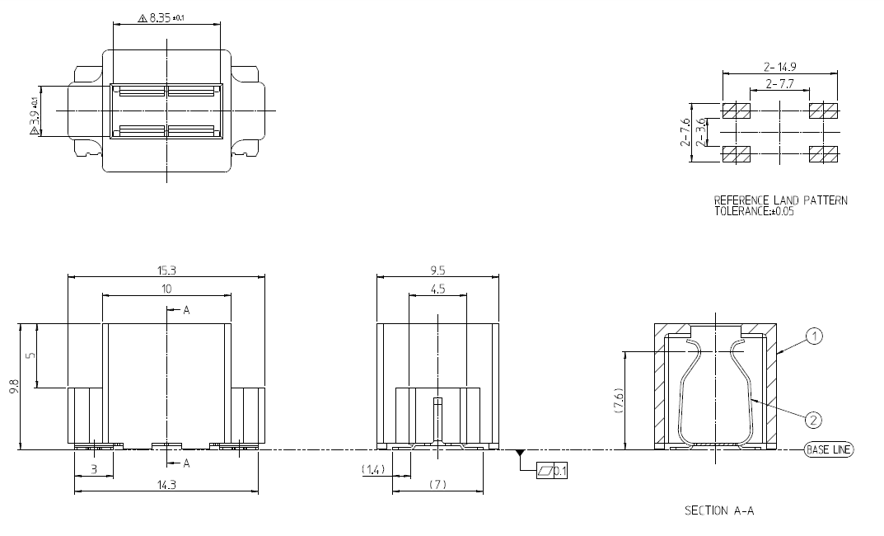

Product image
| Technology | High Current | Working Height | - |
|---|---|---|---|
| Plug/Rece(Male/Female) | Rece | Row | Single |
| Boss | W/O | Number of Pins | 1 |
| Rated Current | 25 A | Contact Resistance | 30mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 5,000times |
| Insertion Force | 10N Maximum | Initial Height～Mating Condition Height | 9.8mm |
| Soldering Method | SMD_Vertical | Compatible Product | TBP-6533S25A-1-00-0000 |
| CAP | W/O | Packaging | Tape&Reel |
| Packaging Quantity | 300pcs |
