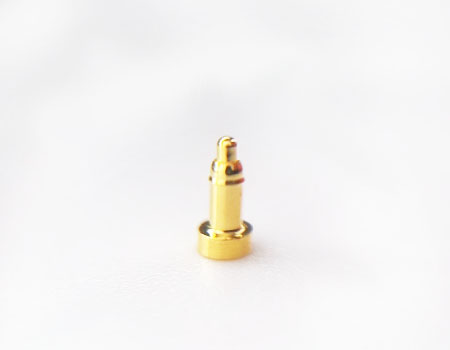

Product image

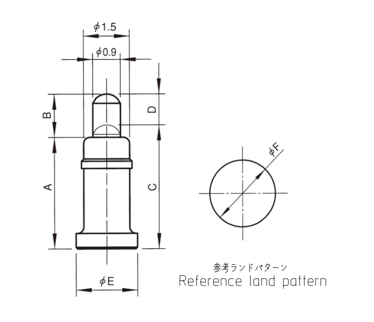

| Technology | High Durability | A | 3.6 |
|---|---|---|---|
| B | 0.7 | C | 3.8 |
| D | 0.5 | E | 2 |
| F | 2.6 | Working Height | 3.8 mm |
| Working Range(Reference) | 3.7~3.95 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Spring Force | 1.0N |
| Rated Current | 2 A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 100,000 times | Soldering Method | SMD_Vertical |
| CAP | W/O | Packaging | Tape&Reel |
| Packaging Quantity | 1,000pcs |
Note

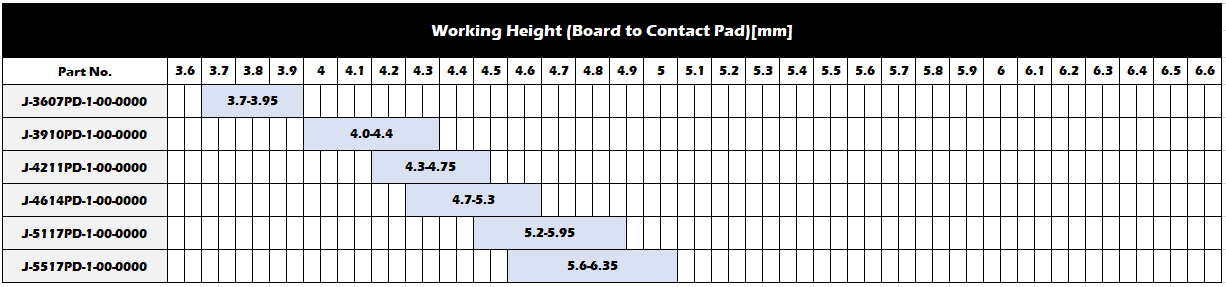

Working Range(Reference)
