J-3915PF-1-00-0000(Bottom Contact)

SPRING CONNECTOR™/Pogo Pins


RoHS

J-3915PF-1-00-0000(Bottom Contact)Product image

SPRING CONNECTOR_1Pin_Bottom Contact Series

J-3915PF-1-00-0000(Bottom Contact)

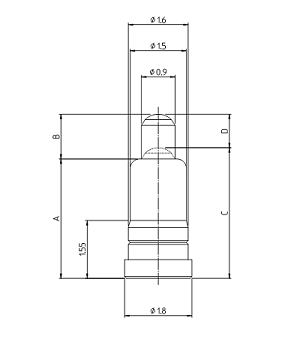

TechnologyN/AA3.9
B1.5C4.4
D1Working Height4.4mm
Working Range(Reference)4.0mm~4.65mmPlug/Rece(Male/Female)Female
RowSingleBossW/O
Number of Pins1Spring Force1.08N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃~+85℃
Cycle Durability20,000cyclesSoldering MethodFloating
CAPW/OPackagingBulk
Packaging Quantity500pcs
Note

Shape to be used only as a reference and may be subject to change.

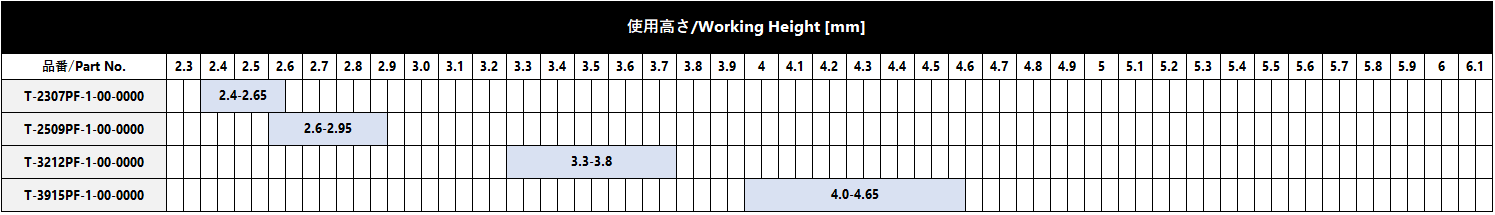

Working Range(Reference)

Working Range(Reference)
