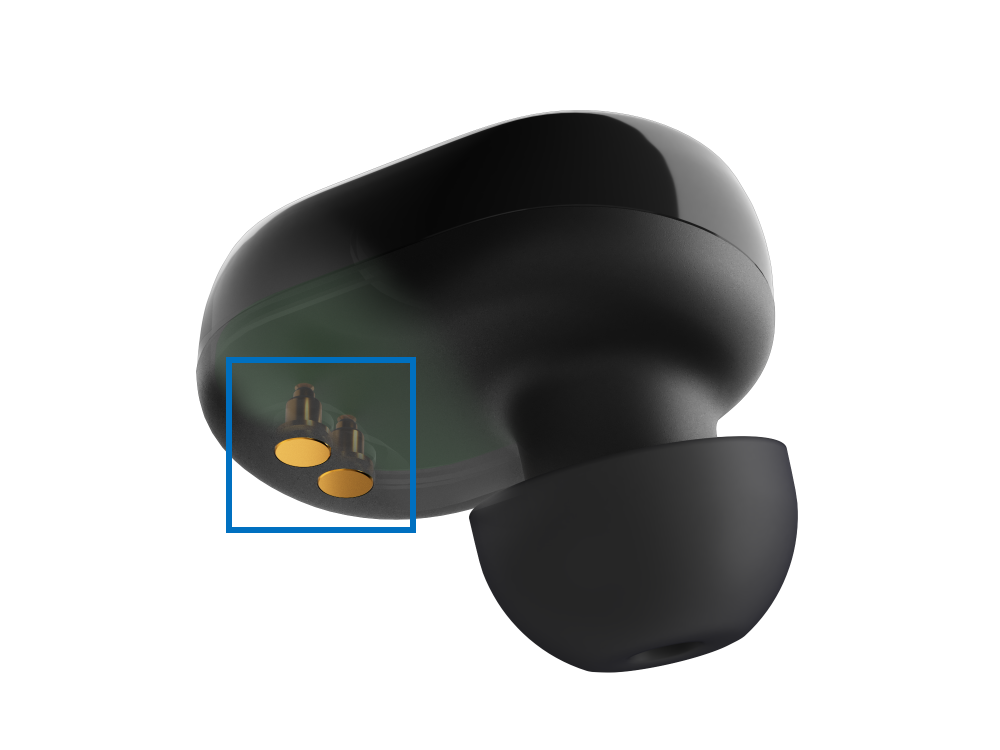

Product image

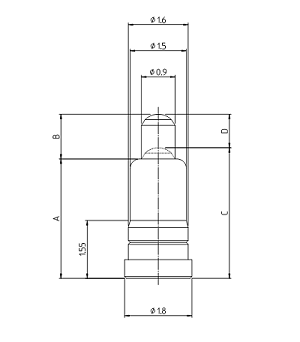

| Technology | N/A | A | 2.3 |
|---|---|---|---|
| B | 0.7 | C | 2.5 |
| D | 0.5 | Working Height | 2.5mm |
| Working Range(Reference) | 2.4mm~2.65mm | Plug/Rece(Male/Female) | Female |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Spring Force | 0.9N |
| Rated Current | 2A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃~＋85℃ |
| Cycle Durability | 20,000cycles | Soldering Method | Floating |
| CAP | W/O | Packaging | Bulk |
| Packaging Quantity | 500pcs |
Note
Shape to be used only as a reference and may be subject to change.

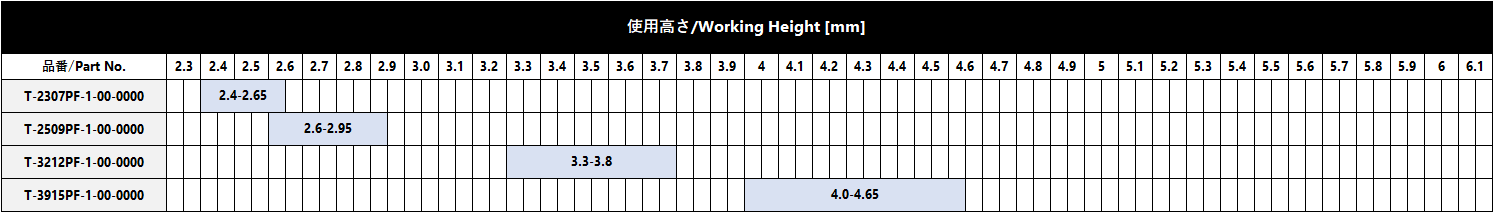

Working Range(Reference)
