J-6220HL-4-25-0000(Low Spring Force)

SPRING CONNECTOR™/Pogo Pins


RoHS

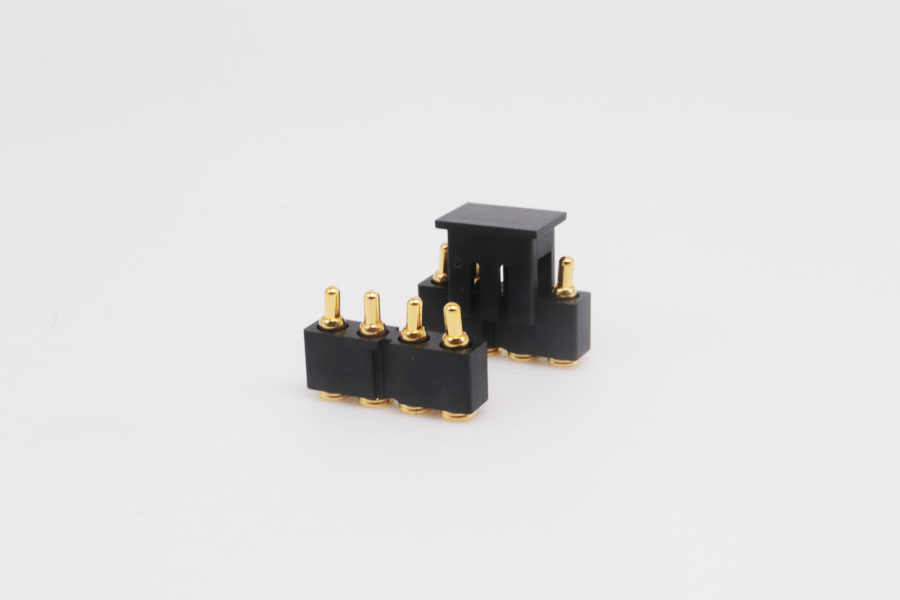

J-6220HL-4-25-0000(Low Spring Force)Product image

Pogo Pin Connectors_4Pin_SMD Vertical Series

J-6220HL-4-25-0000(Low Spring Force)

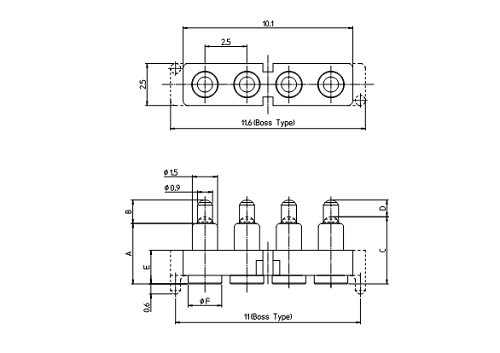

TechnologyN/AA6.2
B2C6.9
D1.3E5
F2Working Height6.9mm
Working Range(Reference)6.3mm~7.2mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins4Pitch2.5 mm
Spring Force0.3NRated Current0.5A
Rated VoltageAC/DC 12VContact Resistance200mΩ
Operation Temp Range-40℃~+85℃Cycle Durability20,000cycles
Soldering MethodSMD_VerticalCompatible ProductJ-4000H-4-25-0000
CAPWPackagingTape&Reel
Packaging Quantity500pcs
Note

Shape to be used only as a reference and may be subject to change.

Working Range(Reference)

Working Range(Reference)

Mating Pad
