J-5517HL-2-25-0000(Low Spring Force)

SPRING CONNECTOR™/Pogo Pins


RoHS

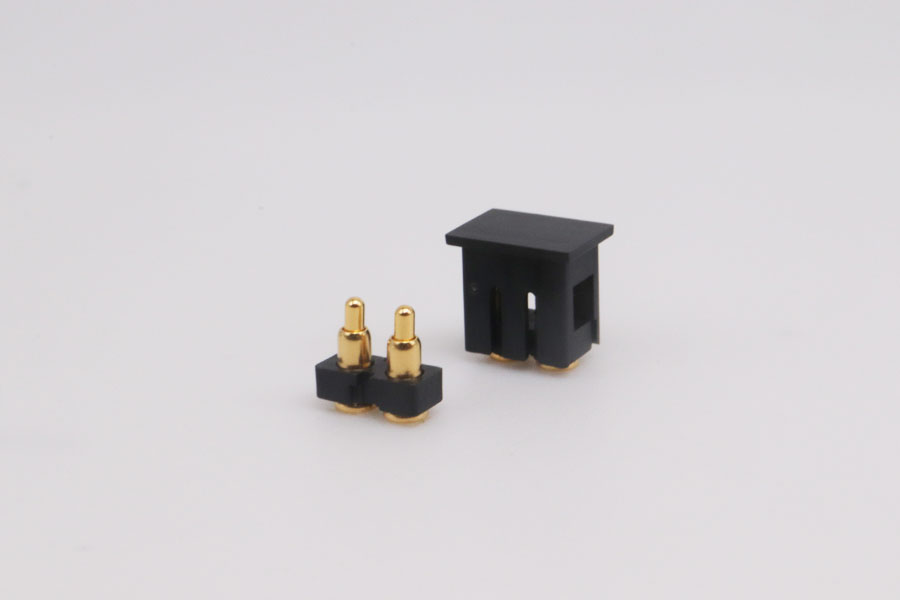

J-5517HL-2-25-0000(Low Spring Force)Product image

Pogo Pin Connectors_2Pin_SMD Vertical Series

J-5517HL-2-25-0000(Low Spring Force)

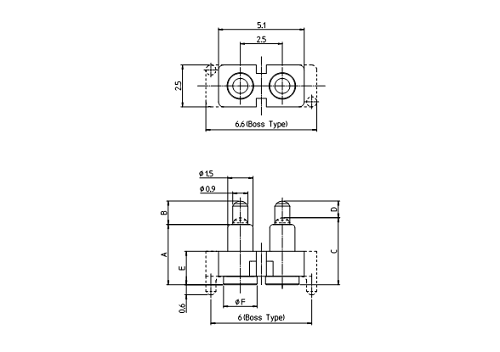

TechnologyN/AA5.5
B1.7C6.1
D1.1E4
F2Working Height6.1mm
Working Range(Reference)5.6mm~6.35mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins2Pitch2.5 mm
Spring Force0.3NRated Current0.5A
Rated VoltageAC/DC 12VContact Resistance200mΩ
Operation Temp Range-40℃~+85℃Cycle Durability20,000cycles
Soldering MethodSMD_VerticalCompatible ProductJ-4000H-2-25-0000
CAPWPackagingTape&Reel
Packaging Quantity500pcs
Note

Shape to be used only as a reference and may be subject to change.

Working Range(Reference)

Working Range(Reference)

Mating Pad
