J-6220PL-1-00-0000(Low Spring Force)

SPRING CONNECTOR™/Pogo Pins


RoHS

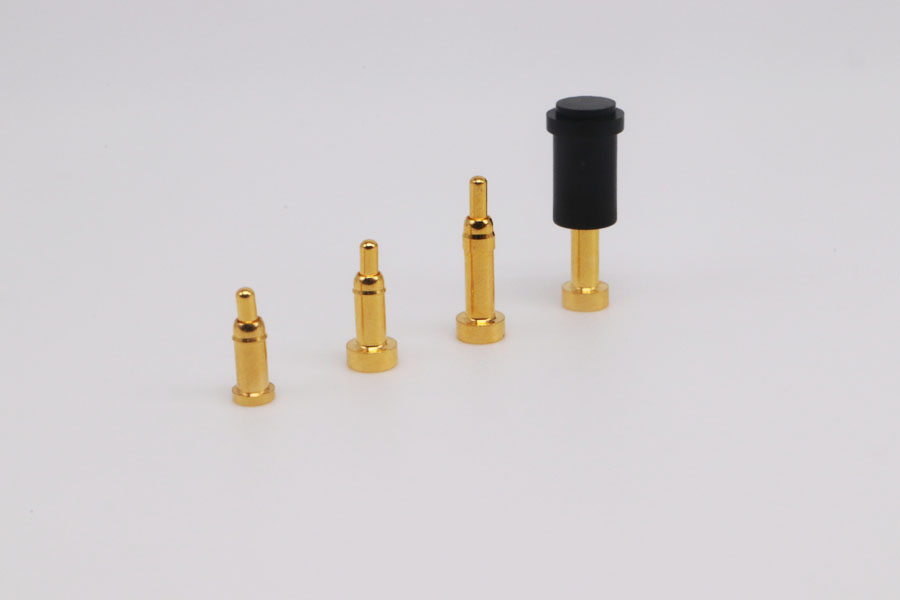

J-6220PL-1-00-0000(Low Spring Force)Product image

Pogo Pin Connectors_1Pin_SMD Vertical Low pressure Series

J-6220PL-1-00-0000(Low Spring Force)

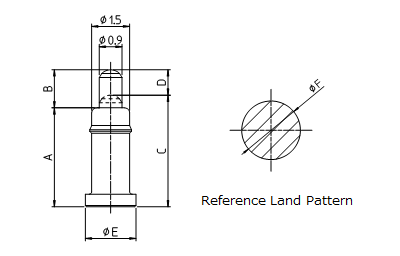

TechnologyN/AA6.2
B2C6.9
D1.3E2.5
F3.1Working Height6.9 mm
Working Range(Reference)6.3〜7.2 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force0.3 NRated Current0.5A
Rated VoltageAC/DC 12VContact Resistance200mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity500pcs
Note

Shape to be used only as a reference and may be subject to change.

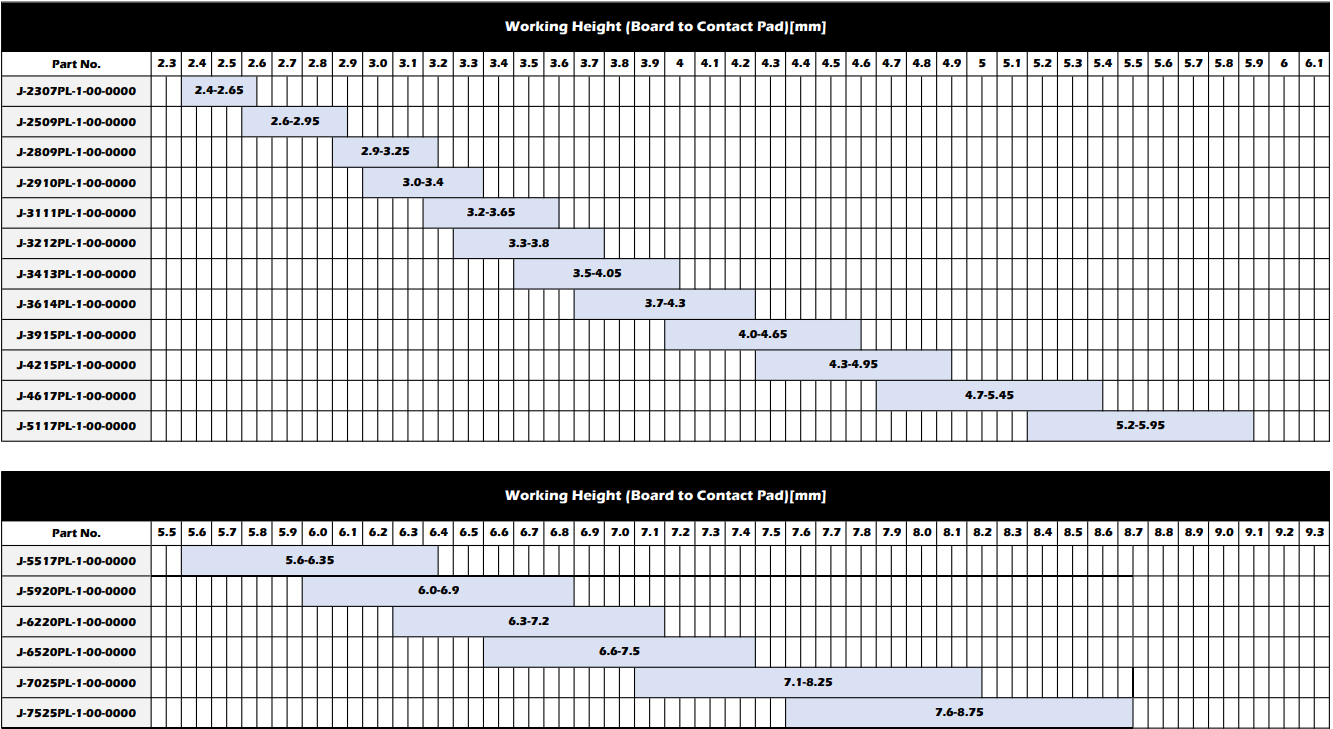

Working Range(Reference)

Working Range(Reference)
