J-4617PL-1-00-0000(Low Spring Force)

SPRING CONNECTOR™/Pogo Pins


RoHS

J-4617PL-1-00-0000(Low Spring Force)Product image

Pogo Pin Connectors_1Pin_SMD Vertical Low pressure Series

J-4617PL-1-00-0000(Low Spring Force)

TechnologyN/AA4.6
B1.7C5.2
D1.1E2.5
F3.1Working Height5.2 mm
Working Range(Reference)4.7〜5.45 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force0.3 NRated Current0.5A
Rated VoltageAC/DC 12VContact Resistance200mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity1,000pcs
Note

Shape to be used only as a reference and may be subject to change.

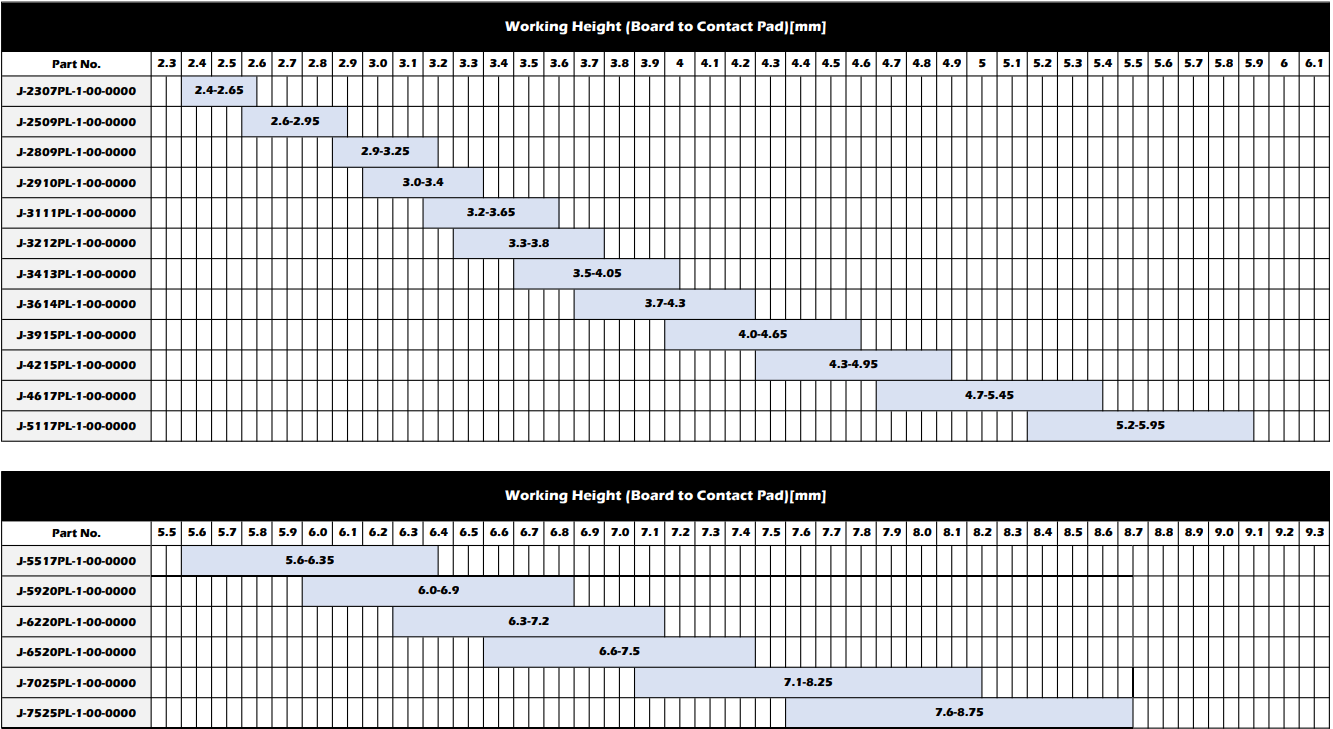

Working Range(Reference)

Working Range(Reference)
