J-3413PL-1-00-0000(Low Spring Force)

SPRING CONNECTOR™/Pogo Pins


RoHS

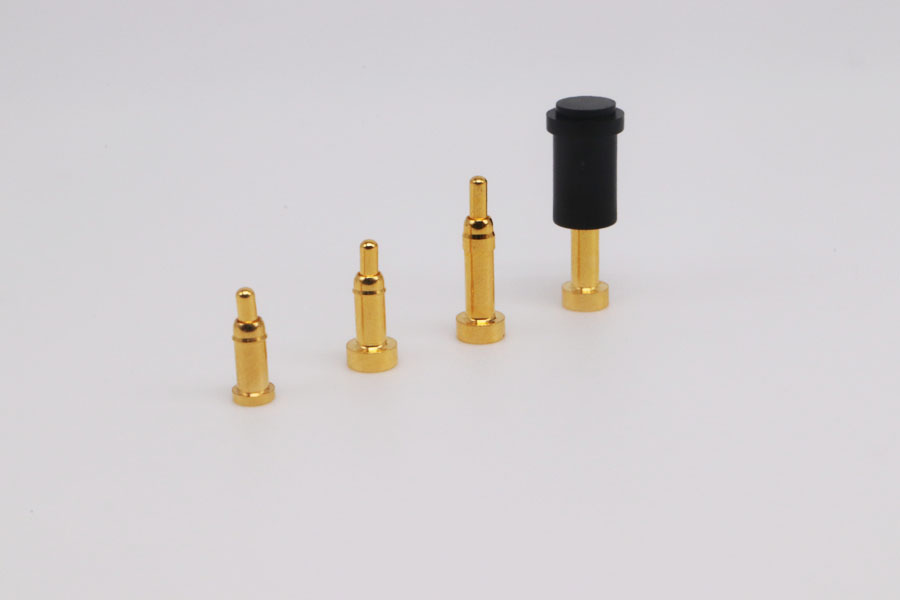

J-3413PL-1-00-0000(Low Spring Force)Product image

Pogo Pin Connectors_1Pin_SMD Vertical Low pressure Series

J-3413PL-1-00-0000(Low Spring Force)

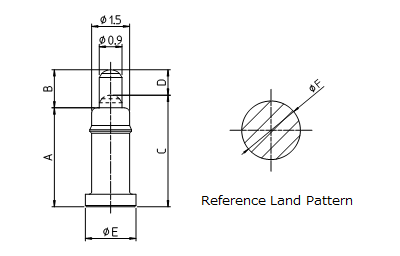

TechnologyN/AA3.4
B1.3C3.8
D0.9E2
F2.6Working Height3.8 mm
Working Range(Reference)3.5〜4.05 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force1.08 NRated Current0.5A
Rated VoltageAC/DC 12VContact Resistance200mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity1,000pcs
Note

Shape to be used only as a reference and may be subject to change.

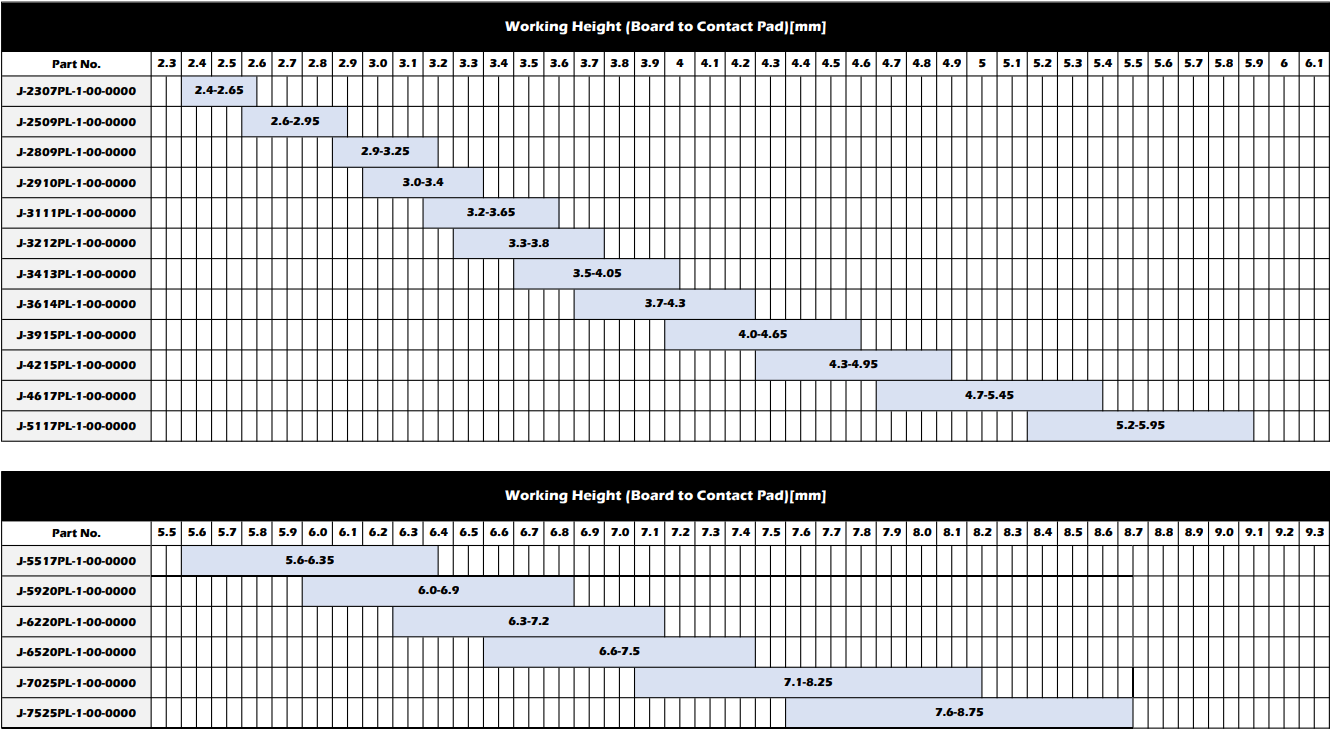

Working Range(Reference)

Working Range(Reference)
