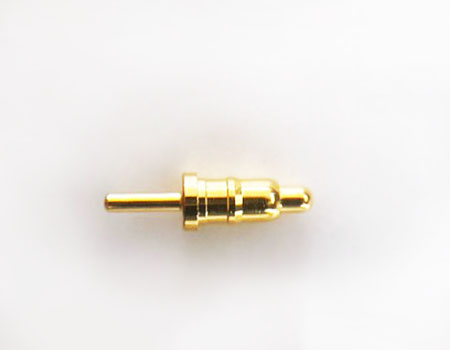

Product image

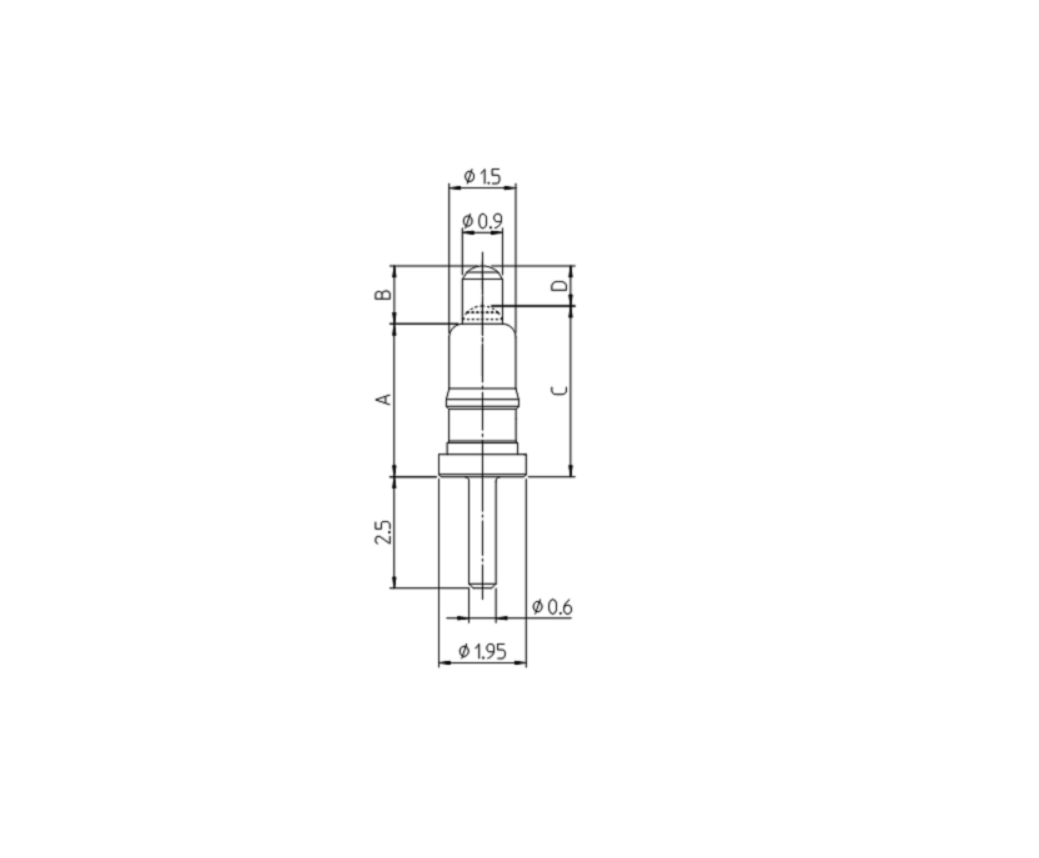

| Technology | N/A | A | 3.1 |
|---|---|---|---|
| B | 1.1 | C | 3.4 |
| D | 0.8 | Working Height | 3.4mm |
| Working Range(Reference) | 3.2〜3.65 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Pitch | Other |
| Spring Force | 1.08N | Rated Current | 2A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | ‐40℃～85℃ | Cycle Durability | 20,000 times |
| Soldering Method | Through Hole | CAP | W/O |
| Packaging | Bulk | Packaging Quantity | 500pcs |
Note

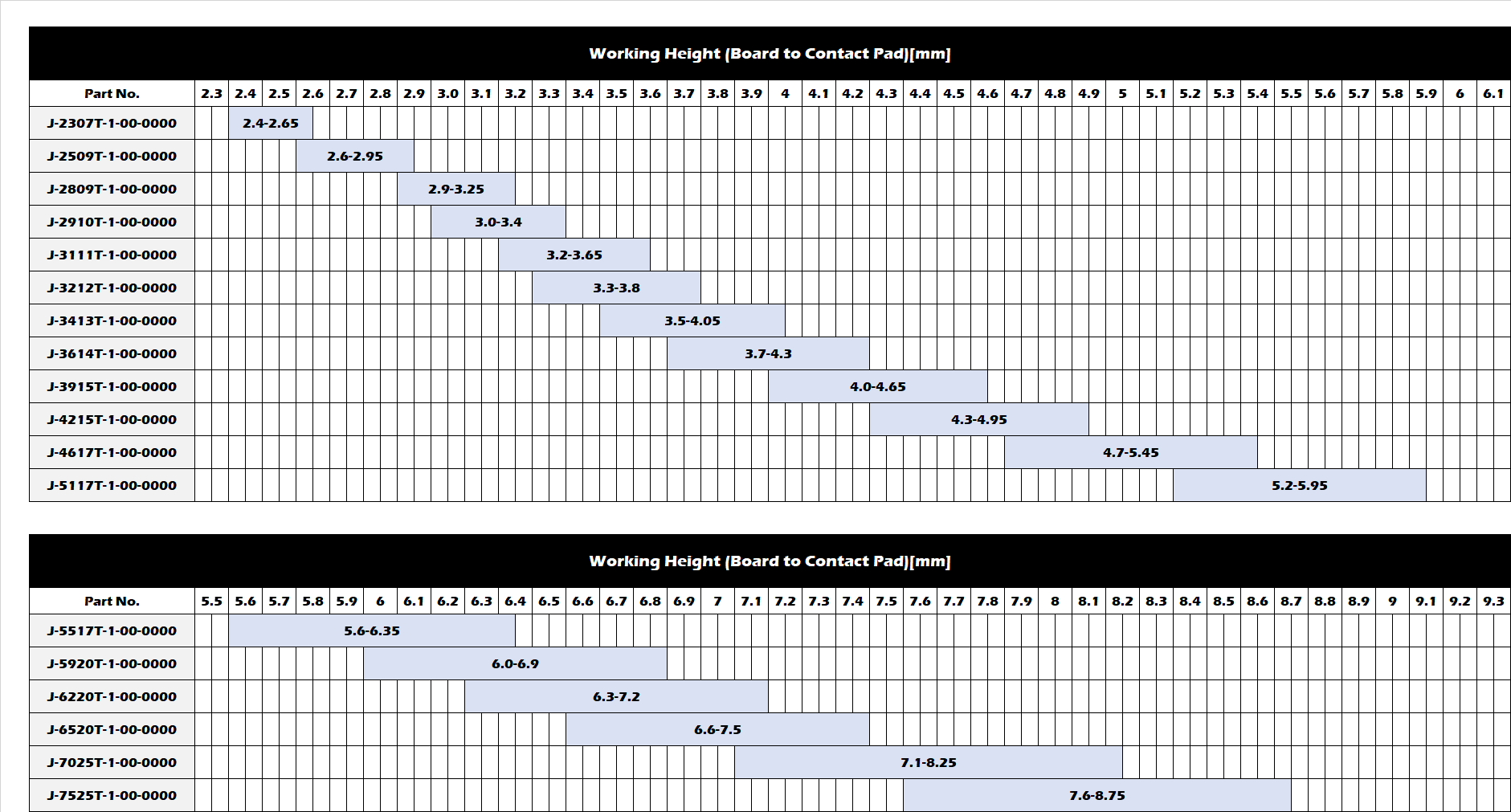

Working Range(Reference)
