Product image
| Technology | N/A | A | 2.9 |
|---|---|---|---|
| B | 1 | C | 3.2 |
| D | 0.7 | E | 1.8 |
| F | 2.4 | Working Height | 3.2 mm |
| Working Range(Reference) | 3.0〜3.4 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Pitch | Other |
| Spring Force | 1.08 N | Rated Current | 2 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | SMD_Vertical | CAP | W |
| Packaging | Tape&Reel | Packaging Quantity | 1,500pcs |
Note
Thin Plating Series

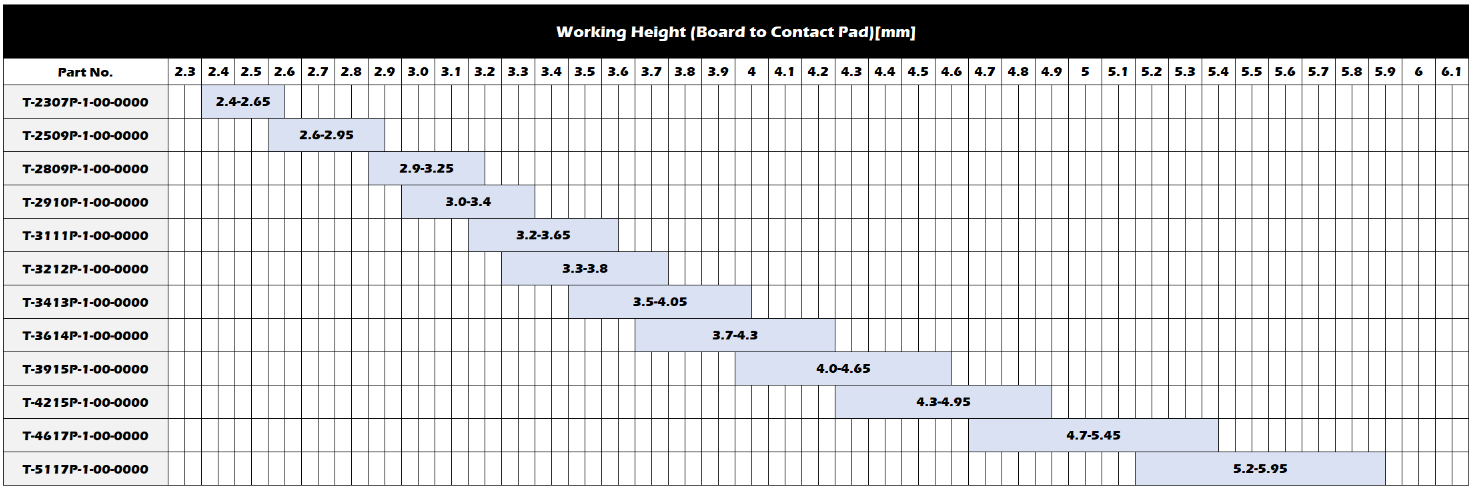

Working Range(Reference)
