S-J-2200X-8-25-0000

Mating Pad


RoHS

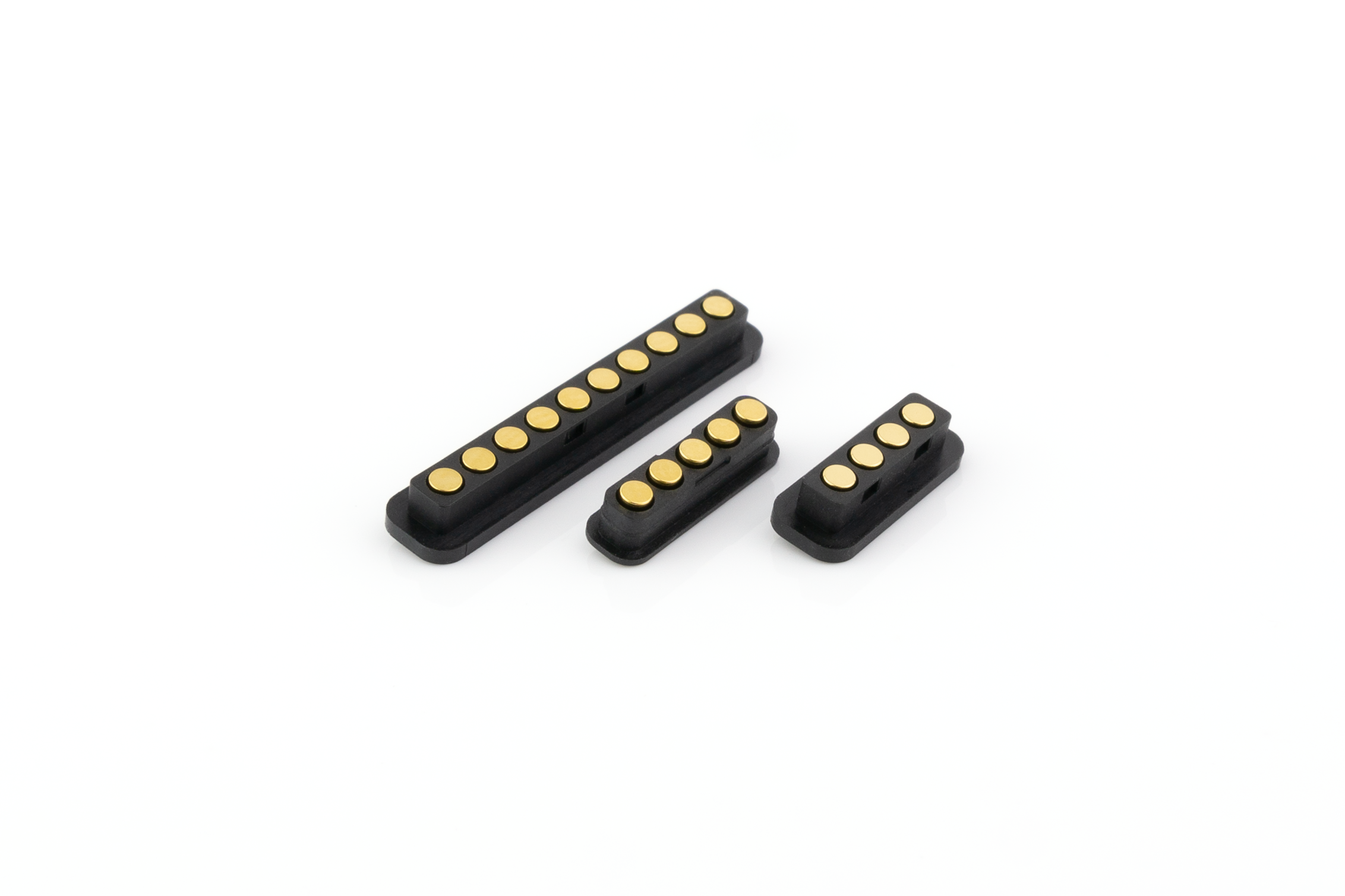

S-J-2200X-8-25-0000Product image

Mating Pad_8Pin_2.5mm Pitch_Through Hole_Water Proof Series

S-J-2200X-8-25-0000

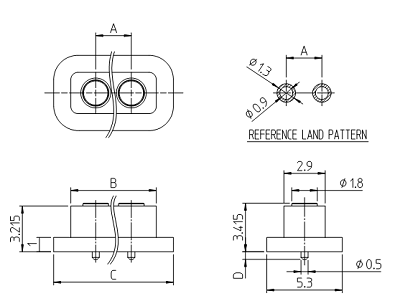

TechnologyWater ProofA17.5
B21C23.4
D0.55Working Height3.415 mm
Plug/Rece(Male/Female)FemaleRowSingle
BossW/ONumber of Pins8
Pitch2.5 mmRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃~+85℃Soldering MethodThrough Hole
CAPW/OPackagingTape&Reel
Packaging Quantity1,500pcs
Note

Shape to be used only as a reference and may be subject to change.
