S-J-2200XL-6-25-0000

Mating Pad


RoHS

S-J-2200XL-6-25-0000Product image

Mating Pad_6Pin_2.5mm Pitch_Through Hole_Water Proof Series

S-J-2200XL-6-25-0000

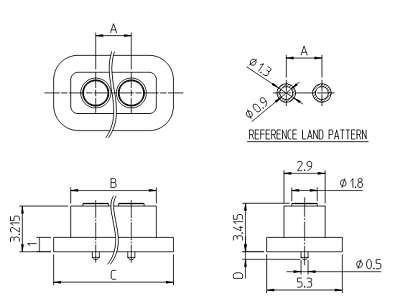

TechnologyWater ProofA12.5
B16C18.4
D1.8Working Height3.415 mm
Plug/Rece(Male/Female)FemaleRowSingle
BossW/ONumber of Pins6
Pitch2.5 mmRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃~+85℃Soldering MethodThrough Hole
CAPW/OPackagingTape&Reel
Packaging Quantity1,000pcs
