J-15516TA-1-00-0000(Cable Connection)

SPRING CONNECTOR™/Pogo Pins


RoHS

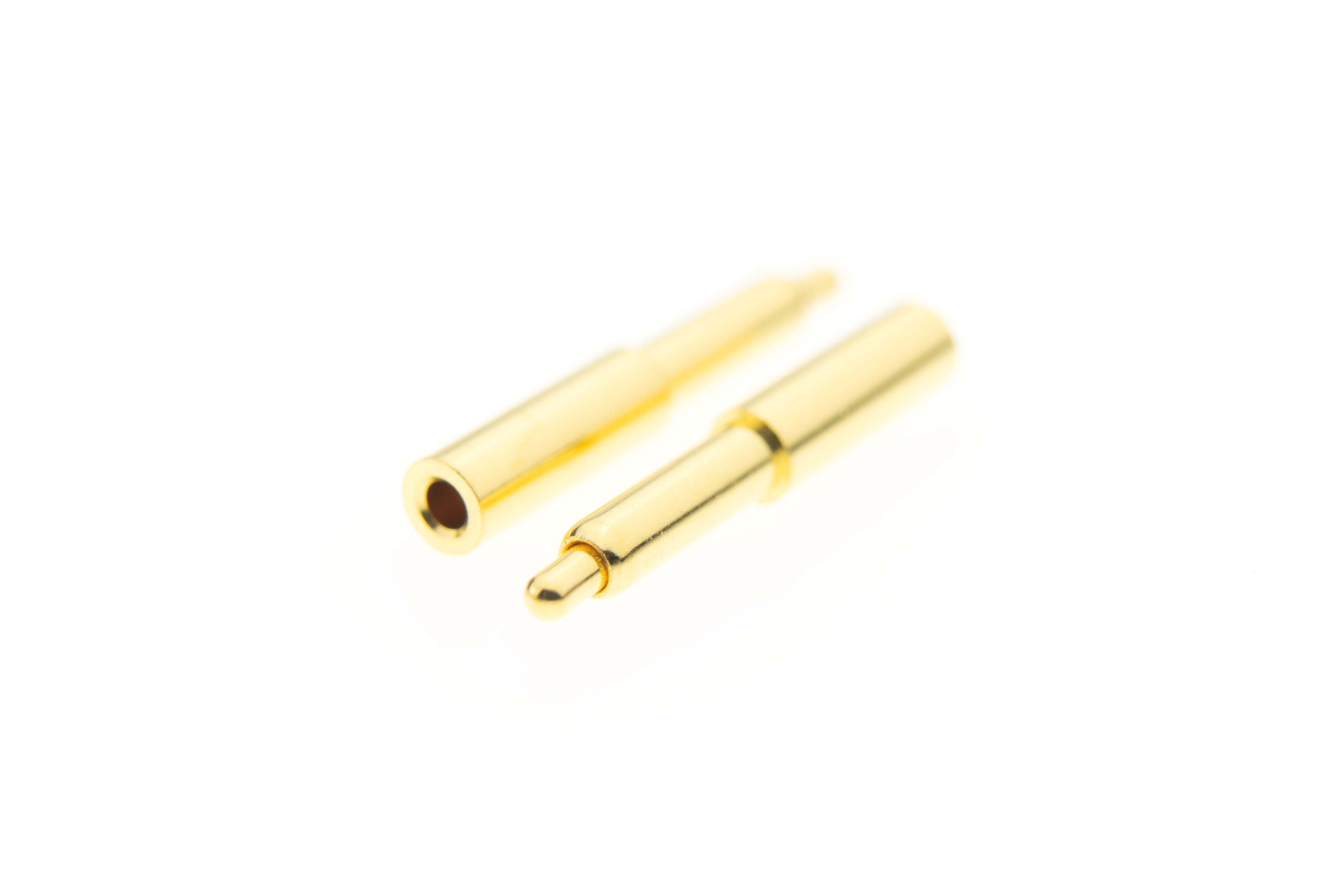

J-15516TA-1-00-0000(Cable Connection)Product image

Pogo Pin Connectors_1Pin_Cable Connection Series

J-15516TA-1-00-0000(Cable Connection)

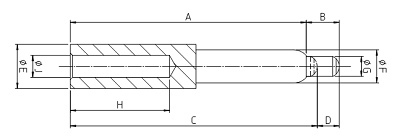

TechnologyHigh CurrentA15.5
B1.6C16
D1.1E3.4
F2G1.4
Working Height16.0mmWorking Range(Reference)15.6mm~16.3mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force1.28N
Rated Current10.0ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃~+85℃
Cycle Durability20,000 timesSoldering MethodCable to wire
CAPW/OPackagingBulk
Packaging Quantity1,000pcs
Note

Shape to be used only as a reference and may be subject to change.

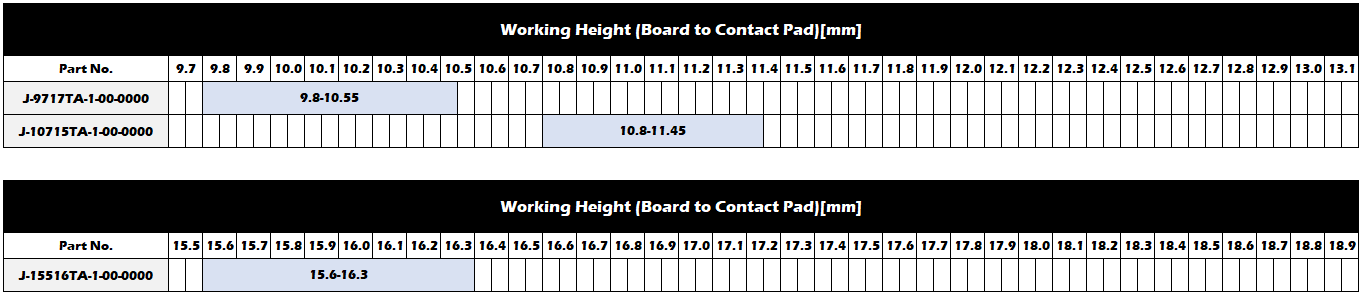

Working Range(Reference)

Working Range(Reference)
