J-10715TA-1-00-0000(Cable Connection)

Pogo Pin Connectors


RoHS

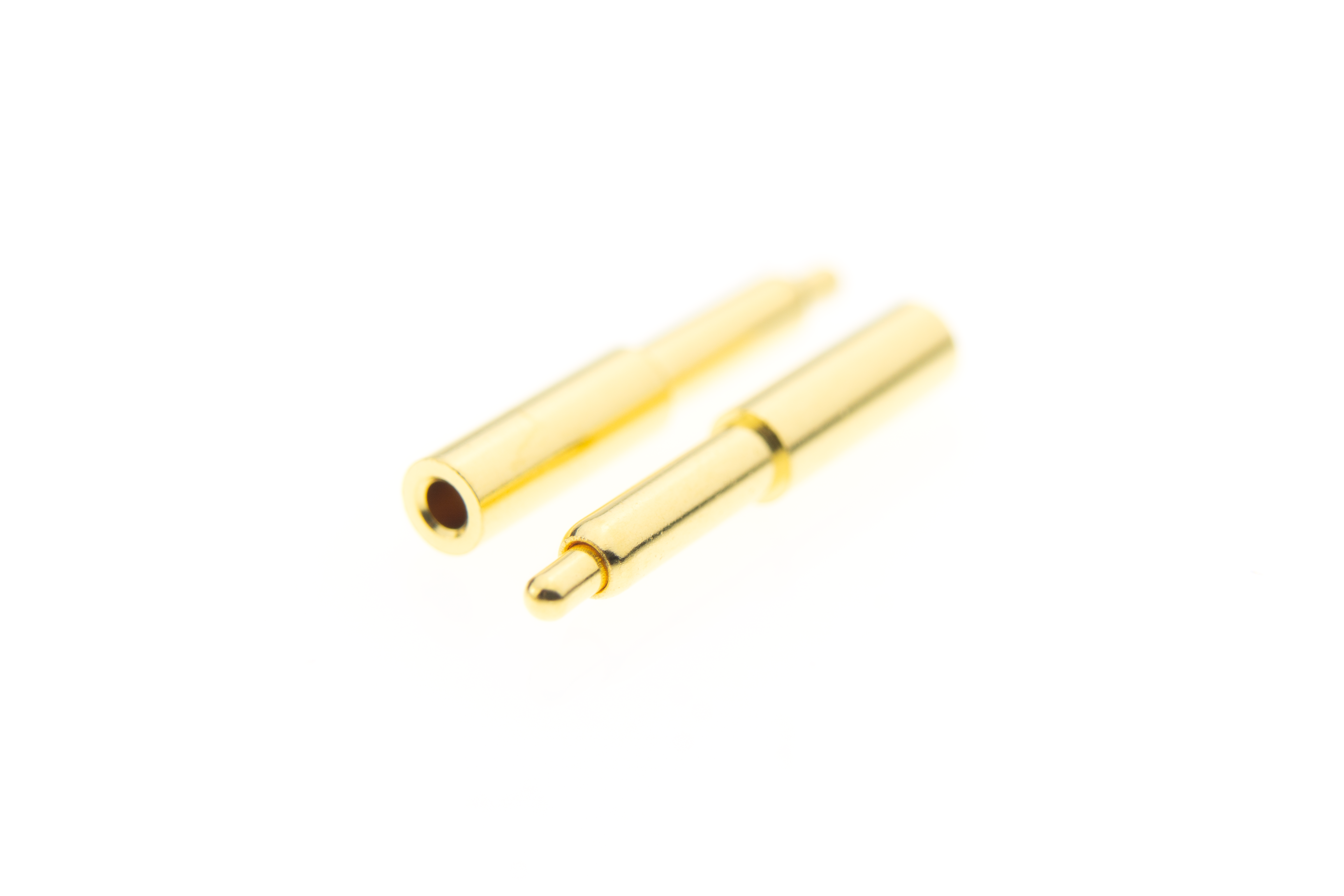

J-10715TA-1-00-0000(Cable Connection)Product image

Pogo Pin Connectors_1Pin_Cable Connection Series

J-10715TA-1-00-0000(Cable Connection)

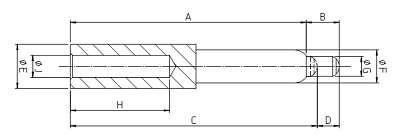

TechnologyHigh CurrentA10.7
B1.5C11.2
D1E2
F1.5G0.9

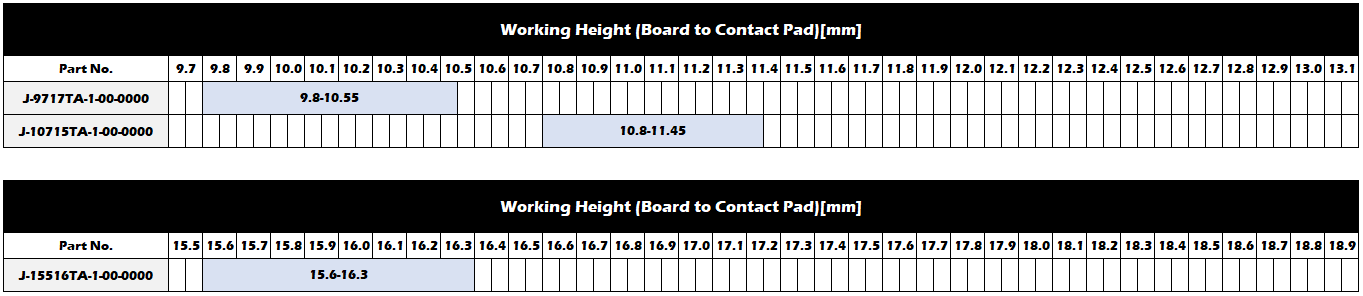

Working Height11.2mmWorking Range(Reference)10.8mm~11.45mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force1.0N
Rated Current5.0ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃~+85℃
Cycle Durability5,000 timesSoldering MethodCable to wire
CAPW/OPackagingBulk
Packaging Quantity5,000pcs
Note

Shape to be used only as a reference and may be subject to change.
