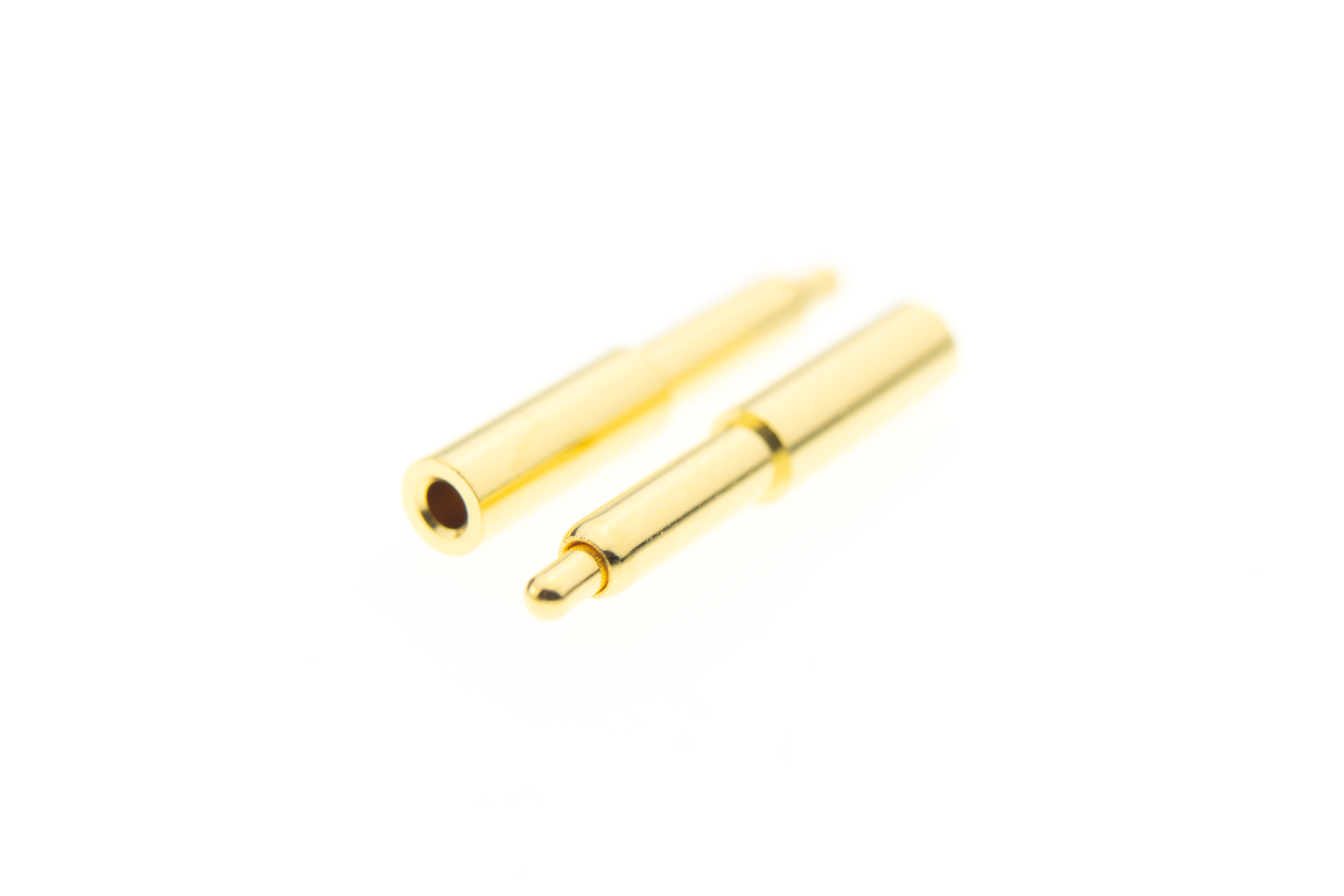

Product image

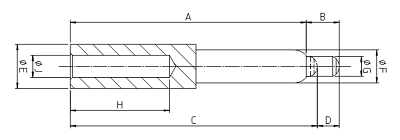

| Technology | N/A | A | 9.7 |
|---|---|---|---|
| B | 1.7 | C | 10.3 |
| D | 1.1 | E | 1.5 |
| F | 1.5 | G | 0.9 |
| Working Height | 10.3mm | Working Range(Reference) | 9.8mm～10.55mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 1 |
| Pitch | Other | Spring Force | 1.08N |
| Rated Current | 2.0A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃～＋85℃ |
| Cycle Durability | 20,000 times | Soldering Method | Cable to wire |
| CAP | W/O | Packaging | Bulk |
| Packaging Quantity | 5,000pcs |
Note
Shape to be used only as a reference and may be subject to change.

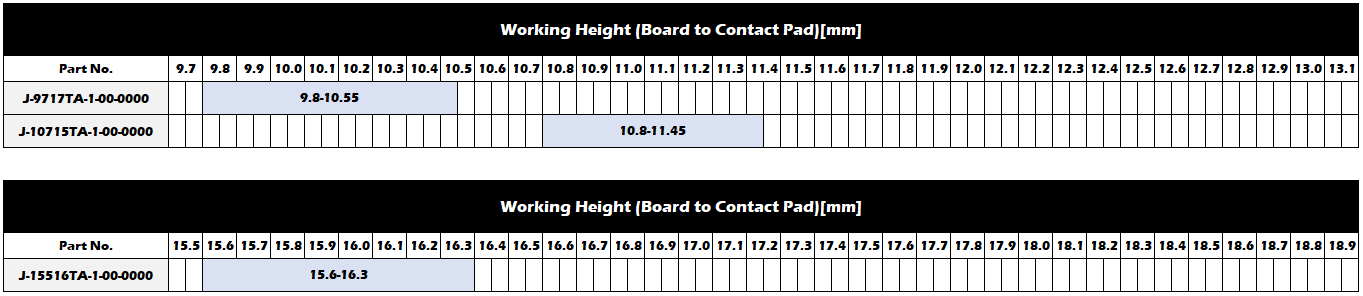

Working Range(Reference)
