J-1404PU-1-00-0000

Pogo Pin Connectors


RoHS

J-1404PU-1-00-0000Product image

Pogo Pin Connectors_1Pin_SMD Vertical Series

J-1404PU-1-00-0000

TechnologyN/AA1.4
B0.4C0.7
D1.5E0.3
Working Height1.5 mmWorking Range(Reference)1.5〜1.6 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force0.4 N
Rated Current0.5ARated VoltageAC/DC 12V
Contact Resistance250mΩOperation Temp Range-40℃〜+85℃
Cycle Durability5,000 timesSoldering MethodSMD_Vertical
CAPW/OPackagingTape&Reel
Packaging Quantity2,500pcs
Note

Shape to be used only as a reference and may be subject to change.

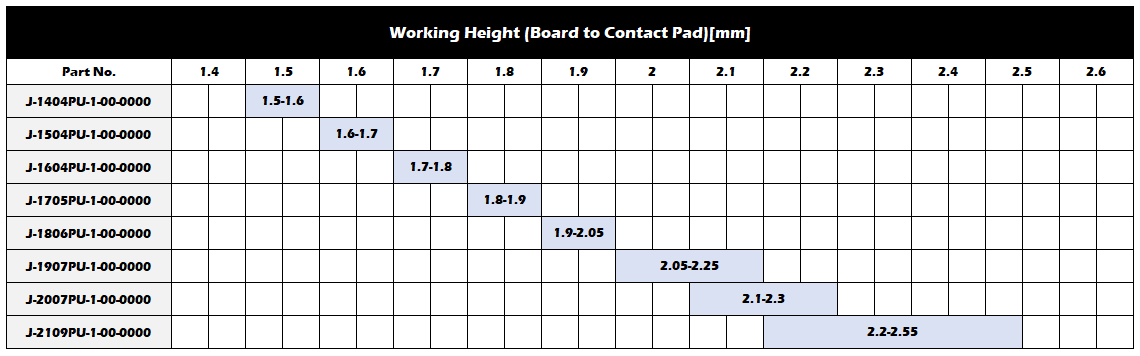

Working Range(Reference)

Working Range(Reference)
