J-3111PL-1-00-0000(Low Spring Force)

Pogo Pin Connectors


RoHS

J-3111PL-1-00-0000(Low Spring Force)Product image

Pogo Pin Connectors_1Pin_SMD Vertical Series

J-3111PL-1-00-0000(Low Spring Force)

TechnologyN/AA3.1
B1.1C3.4
D0.8E1.8
F2.4Working Height3.4mm
Working Range(Reference)3.2mm~3.65mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force0.3NRated Current0.5A
Rated VoltageAC/DC 12VContact Resistance200mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity1,000pcs
Note

Shape to be used only as a reference and may be subject to change.

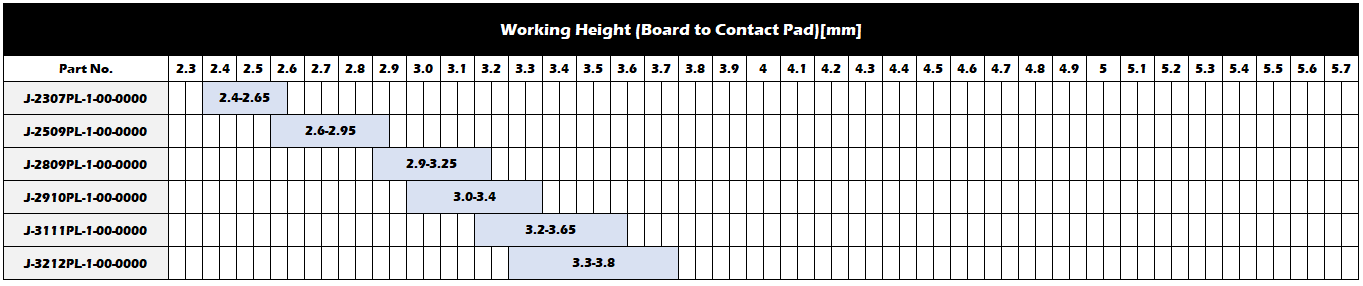

Working Range(Reference)

Working Range(Reference)
