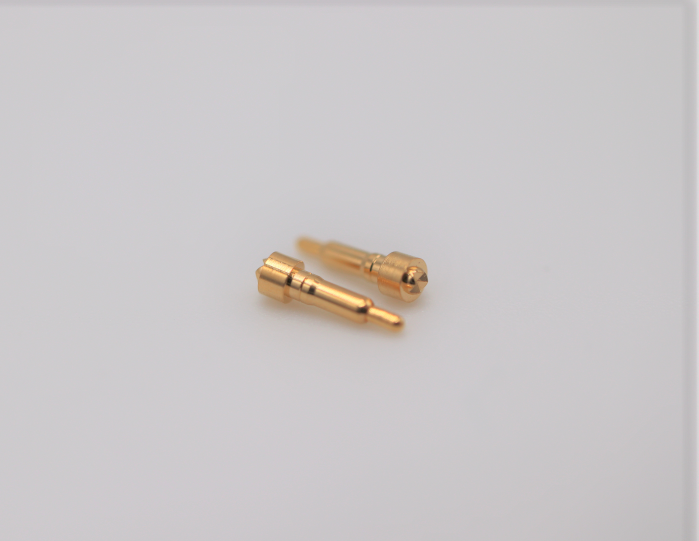

Product image
| Technology | N/A | Working Height | 4.71 mm |
|---|---|---|---|
| Working Range(Reference) | 4.41～5.01mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Pitch | Other |
| Spring Force | 0.5N | Rated Current | 1 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 100mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 10,000 times |
| Soldering Method | Floating | CAP | W/O |
| Packaging | Bulk |
