LWS-2422P-1-00-0000(Solid wire type_Terminal Only)

Lead Socket


RoHS

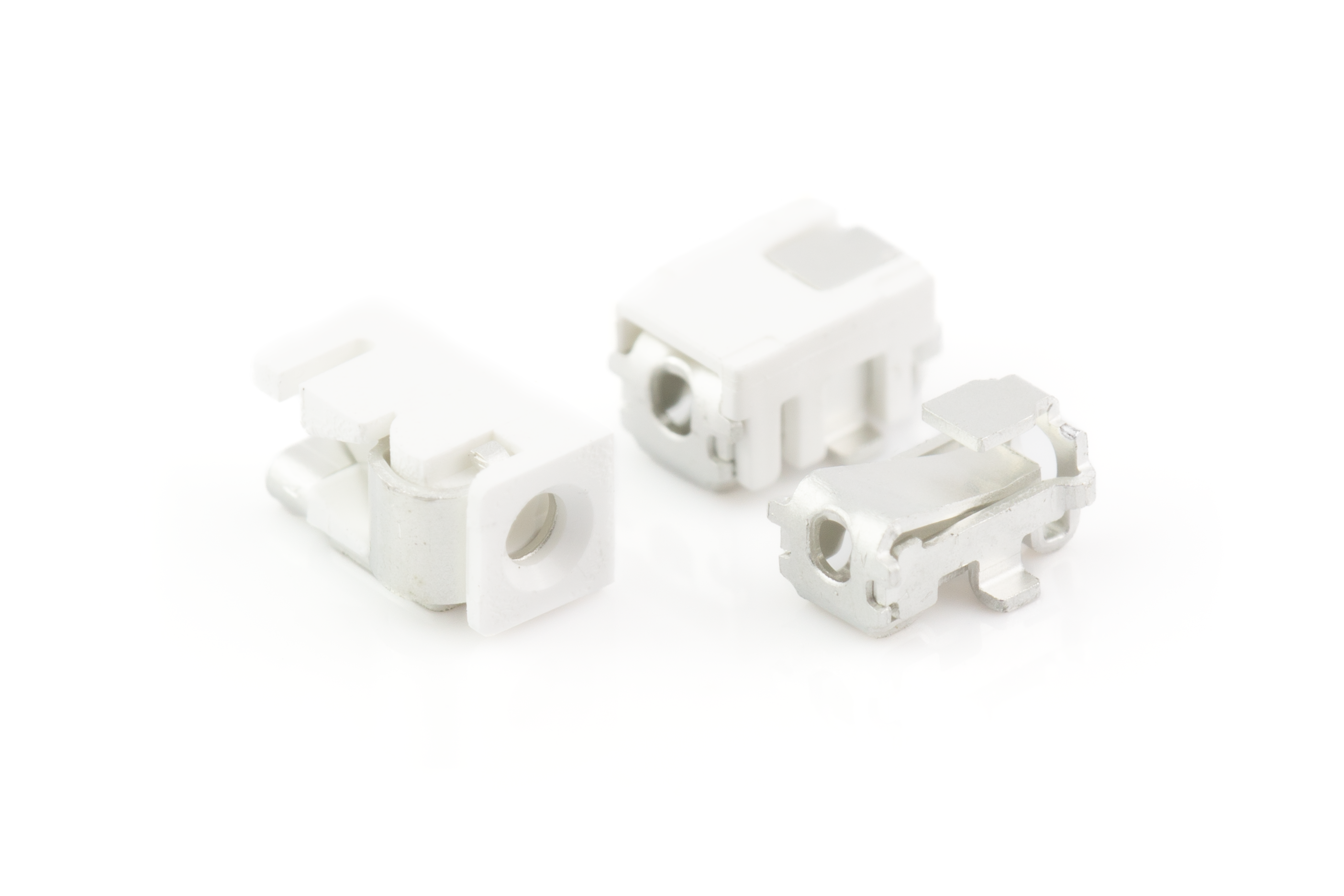

LWS-2422P-1-00-0000(Solid wire type_Terminal Only)Product image

Lead Socket_1Pin_SMD Vertical Series

LWS-2422P-1-00-0000(Solid wire type_Terminal Only)

TechnologyN/ABossW/O
Number of Pins1Rated Current4A
Contact Resistance30mΩOperation Temp Range-40℃〜+105℃
Core DiameterΦ0.5~Φ0.65Recommended WireEquivalent to AWG#22~#24(single wire or overcoat twisted wire)
Insertion ForceLess than 10NExtraction ForceMore than 1.0N
Soldering MethodSMD_VerticalCAPW/O
PackagingTape&ReelPackaging Quantity2,000pcs
