TBR-6632F-6-30-0000

Two Piece Connector


RoHS

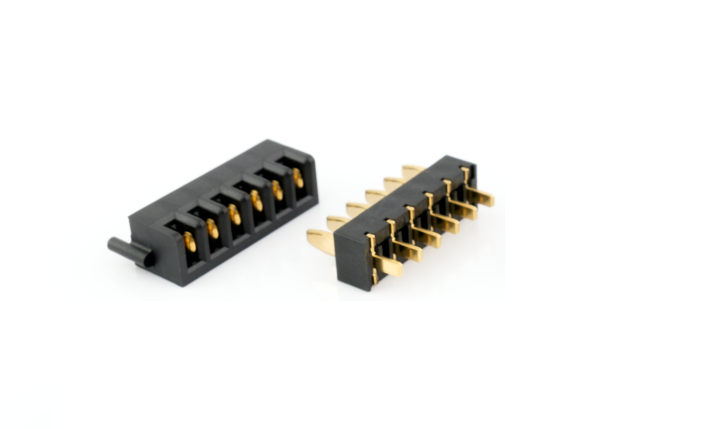

TBR-6632F-6-30-0000Product image

Two Piece Connector_6Pin_3.0mm Pitch_Through Hole Series

TBR-6632F-6-30-0000

TechnologyN/APlug/Rece(Male/Female)Rece
RowSingleBossW
Number of Pins6Pitch3.0 mm
Rated Current3ARated VoltageAC/DC 12V
Contact Resistance30mΩOperation Temp Range-40℃〜+85℃
Cycle Durability2,000timesFloating Amount±0.5mm
Soldering MethodThrough HoleCompatible ProductTBP-4725F-6-30-0000
CAPW/O
