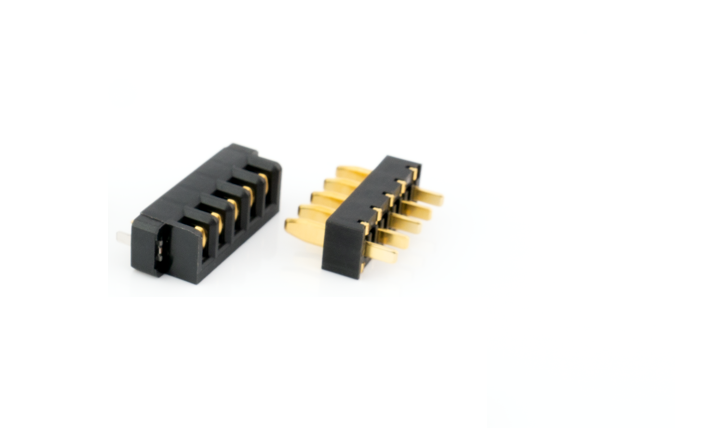

Product image

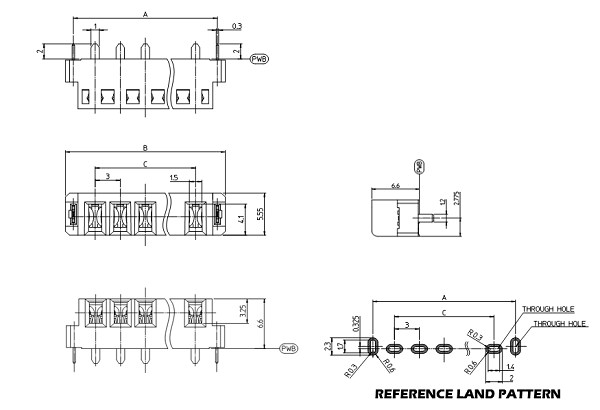

| Technology | N/A | A | 17.2 |
|---|---|---|---|
| B | 19.1 | C | 12 |
| Working Height | - | Plug/Rece(Male/Female) | Rece |
| Row | Single | Boss | W/O |
| Number of Pins | 5 | Pitch | 3.0 mm |
| Rated Current | 3 A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 30mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 2,000times | Floating Amount | ±0.5mm |
| Soldering Method | Through Hole | Compatible Product | TBP-4725F-5-30-0000 |
| CAP | W/O |
