TBP-4725F-3-30-0000

Two Piece Connector


RoHS

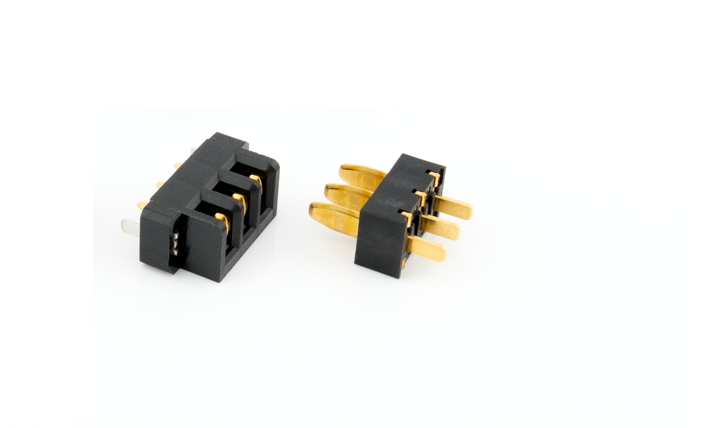

TBP-4725F-3-30-0000Product image

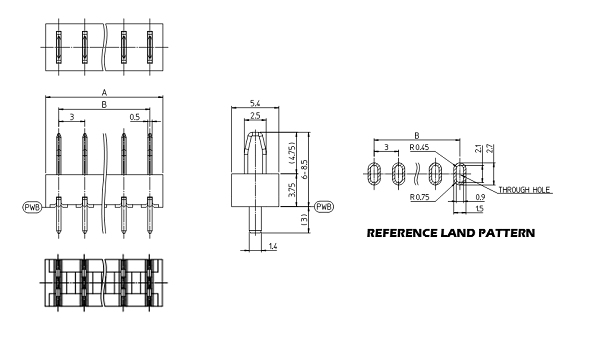

Two Piece Connector_3Pin_3.0mm Pitch_Through Hole Series

TBP-4725F-3-30-0000

TechnologyN/AA9
B6Plug/Rece(Male/Female)Plug
RowSingleBossW/O
Number of Pins3Pitch3.0 mm
Rated Current3ARated VoltageAC/DC 12V
Contact Resistance30mΩOperation Temp Range-40℃〜+85℃
Cycle Durability2,000timesFloating Amount±0.5mm
Soldering MethodThrough HoleCompatible ProductTBR-6632F-3-30-0000
CAPW/O
