TBP-1813T-4-25-0000

Two Piece Connector


RoHS

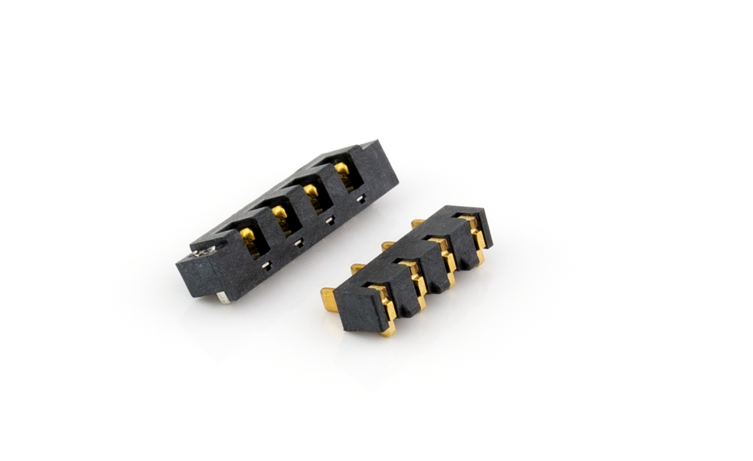

TBP-1813T-4-25-0000Product image

Two Piece Connector_4Pin_2.5mm Pitch_Through Hole Series

TechnologyN/APlug/Rece(Male/Female)Plug
RowSingleBossW/O
Number of Pins4Pitch2.5 mm
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability2,000timesFloating Amount±0.3mm
Soldering MethodThrough Hole Compatible ProductTBR-2519T-4-25-0000
CAPW/OPackagingTape&Reel
Packaging Quantity2,000pcs
Note
