J-4000W-8-25-0000

Mating Pad


RoHS

J-4000W-8-25-0000Product image

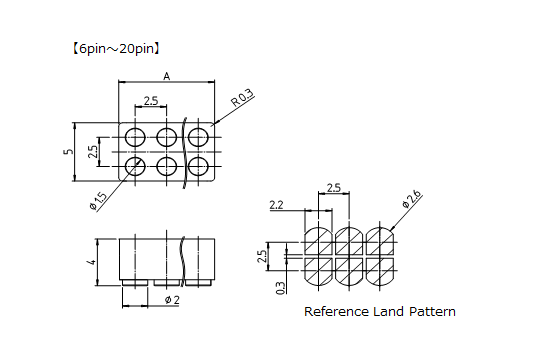

Mating Pad_Dou Row_8Pin_2.5mm Pitch_SMD Vertical Series

J-4000W-8-25-0000

TechnologyN/AA10.1
Working Height4.0 mmPlug/Rece(Male/Female)Female
RowDoubleBossW/O
Number of Pins8Pitch2.5 mm
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability-Soldering MethodSMD_Vertical
CAPWPackagingTape&Reel
Packaging Quantity400pcs
Note
