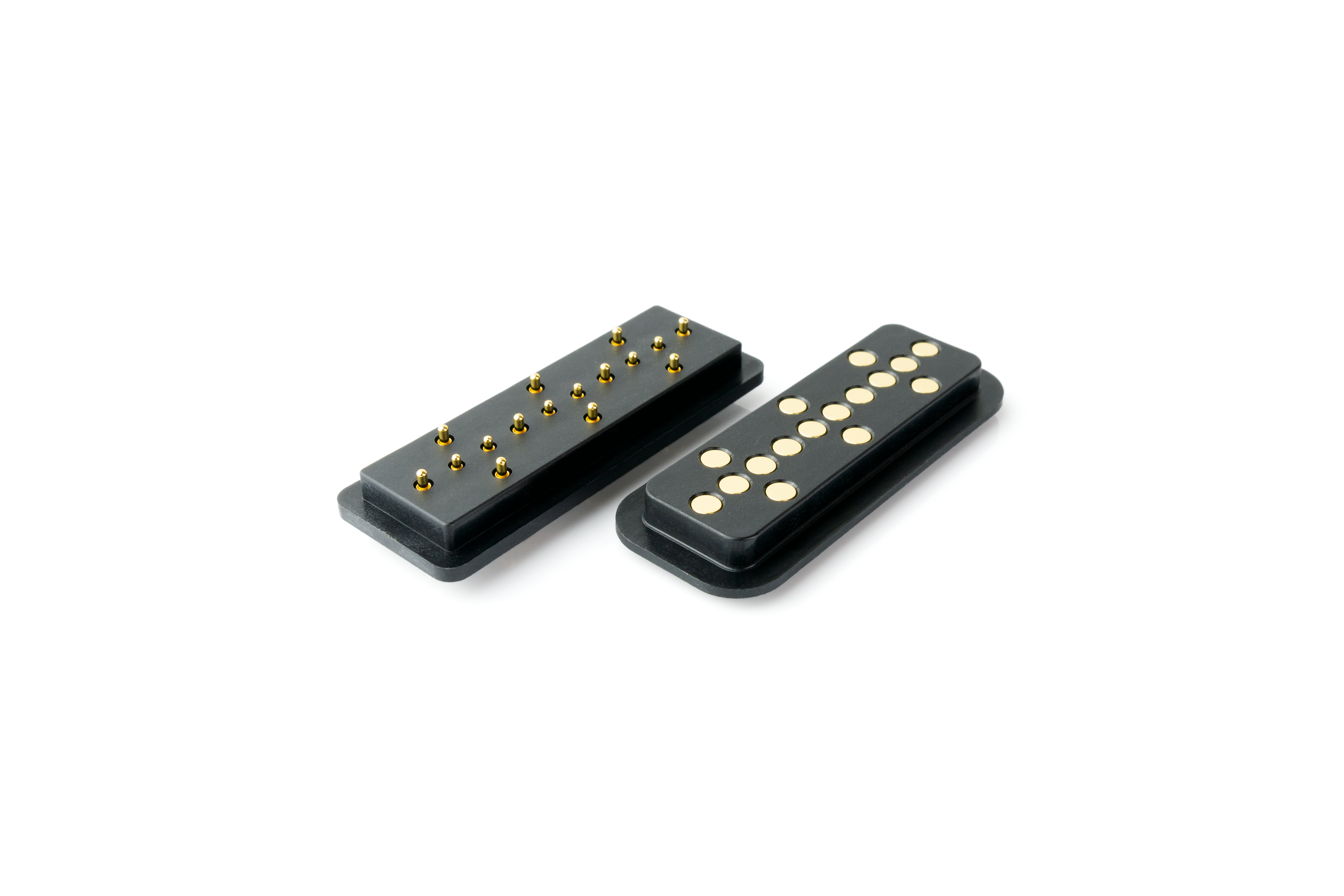

Product image
Mating Pad_16Pin_3.75mm Pitch_Through Hole_Water Proof_High Speed Transmission Series
| Technology | Water Proof, High Speed Transmission | Working Height | 4.25 mm |
|---|---|---|---|
| Plug/Rece(Male/Female) | Female | Boss | W/O |
| Number of Pins | 16 | Pitch | Other |
| Rated Current | 2 A | Rated Voltage | AC/DC 20V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃~＋85℃ |
| Soldering Method | Through Hole | Compatible Product | S-J-6717XG-16-375-0000 |
| CAP | W/O | Packaging | Tray |
| Packaging Quantity | 20pcs |
Note
Shape to be used only as a reference and may be subject to change.
