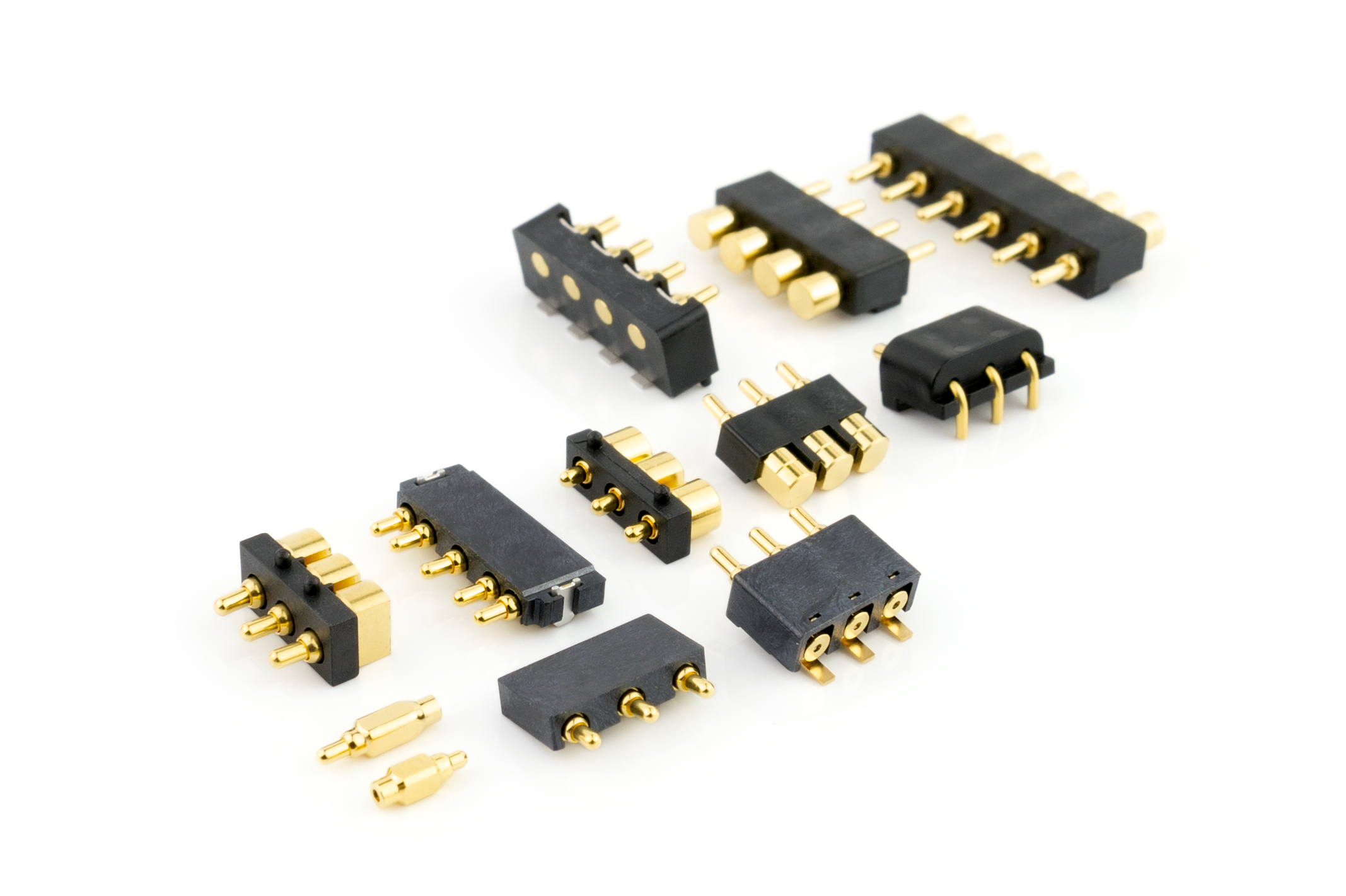

Product image
| Technology | N/A | Working Height | 5.0 mm |
|---|---|---|---|
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 5 |
| Pitch | Other | Spring Force | 1.2 N |
| Rated Current | 2A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 20,000 times | Soldering Method | SMD_Right Angle |
| CAP | W/O | Packaging | Tape&Reel |
| Packaging Quantity | 1,500pcs |
