S-J-4014R23-5-35-0000

Pogo Pin Connectors
Right Angle Connector

RoHS

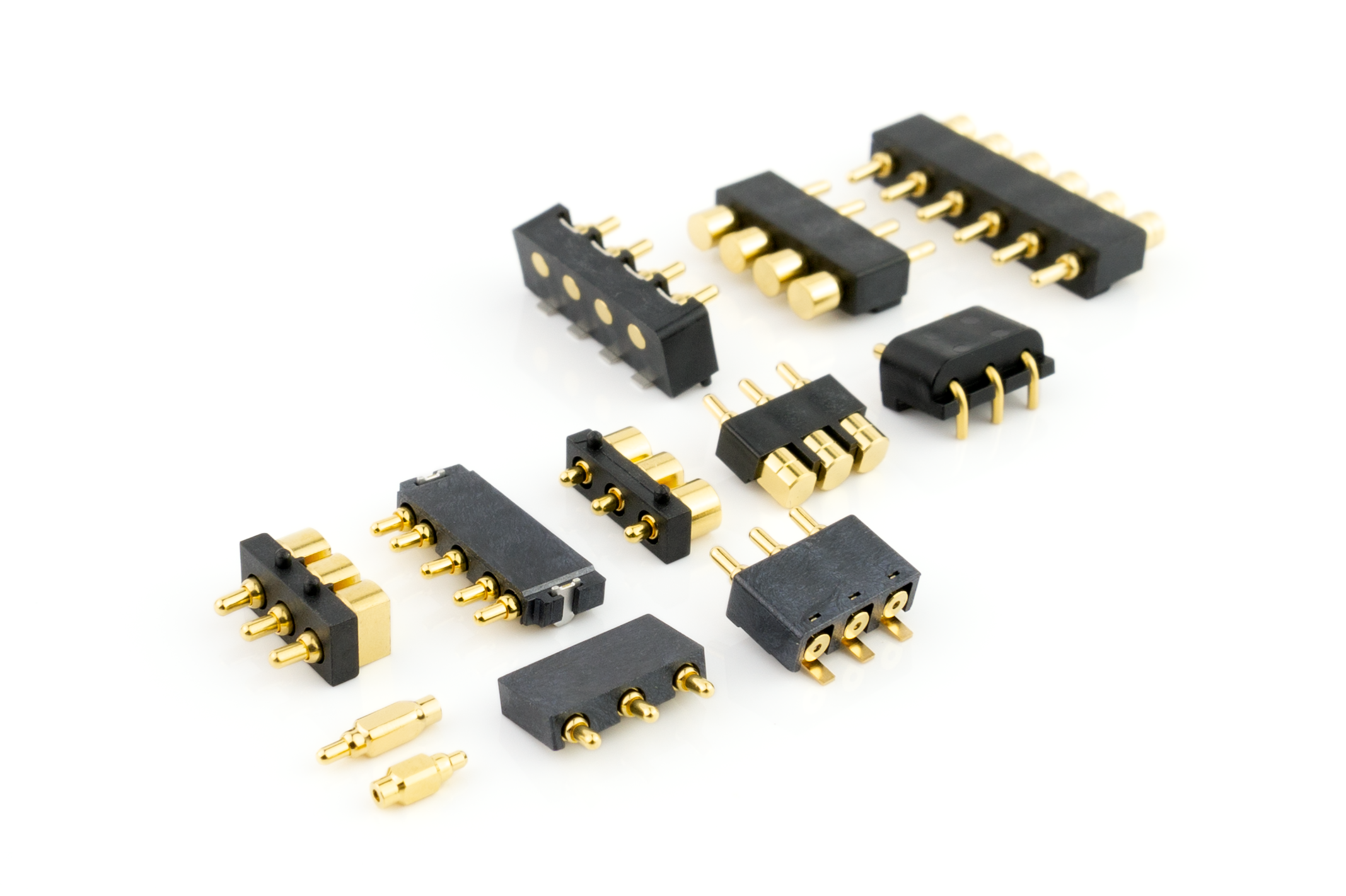

S-J-4014R23-5-35-0000Product image

Right Angle Connector_5Pin_3.5mm Pitch_SMD Right Angle Series

TechnologyN/AWorking Height4.4 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins5
Pitch3.5 mmSpring Force0.9 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability10,000 timesSoldering MethodSMD_Right Angle
CAPW/OPackagingTape&Reel
Packaging Quantity1,000pcs
Note
