S-J-4817R28-4-37-0000

SPRING CONNECTOR™/Pogo Pins
Right Angle Connector

RoHS

S-J-4817R28-4-37-0000Product image

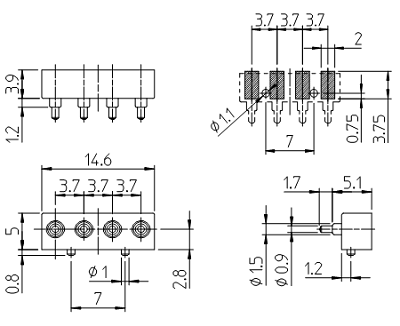

Right Angle Connector_4Pin_3.7mm Pitch_SMD Right Angle Series

S-J-4817R28-4-37-0000

TechnologyN/AWorking Height-
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins4
PitchOtherSpring Force1.08N
Rated Current2 ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜＋85℃
Cycle Durability20,000timesSoldering MethodSMD_Right Angle
CAPW/OPackagingTape&Reel
Packaging Quantity1,000pcs
