S-J-7325R11-4-30-0000

Pogo Pin Connectors
Right Angle Connector

RoHS

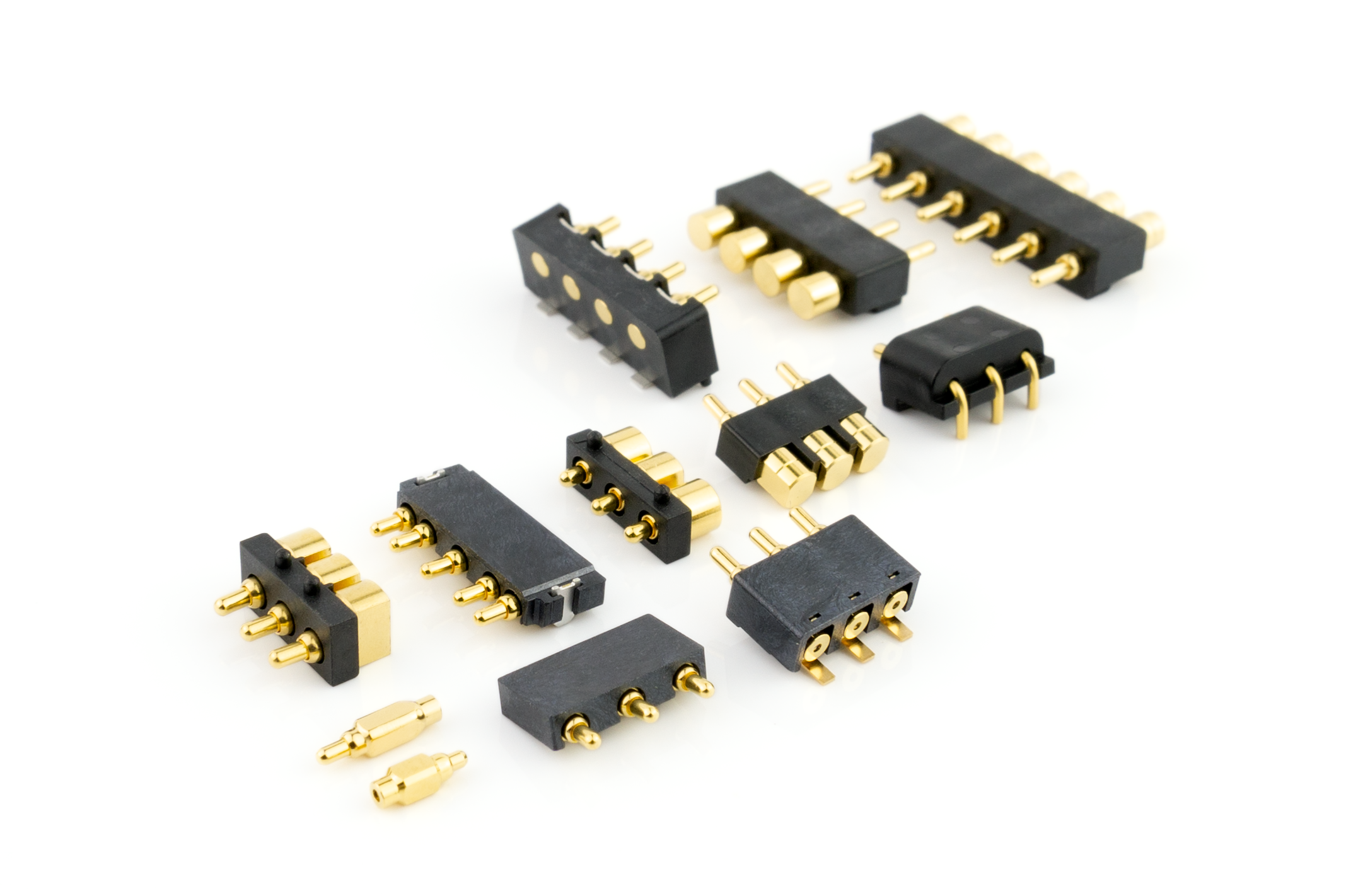

S-J-7325R11-4-30-0000Product image

Right Angle Connector_4Pin_3.0mm Pitch_SMD Right Angle Series

TechnologyN/AWorking Height8.2 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins4
Pitch3.0 mmSpring Force1.25 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Right Angle
CAPW/OPackagingTape&Reel
Packaging Quantity1,000pcs
Note
