S-J-4214R20-4-20-0000

SPRING CONNECTOR™/Pogo Pins
Right Angle Connector

RoHS

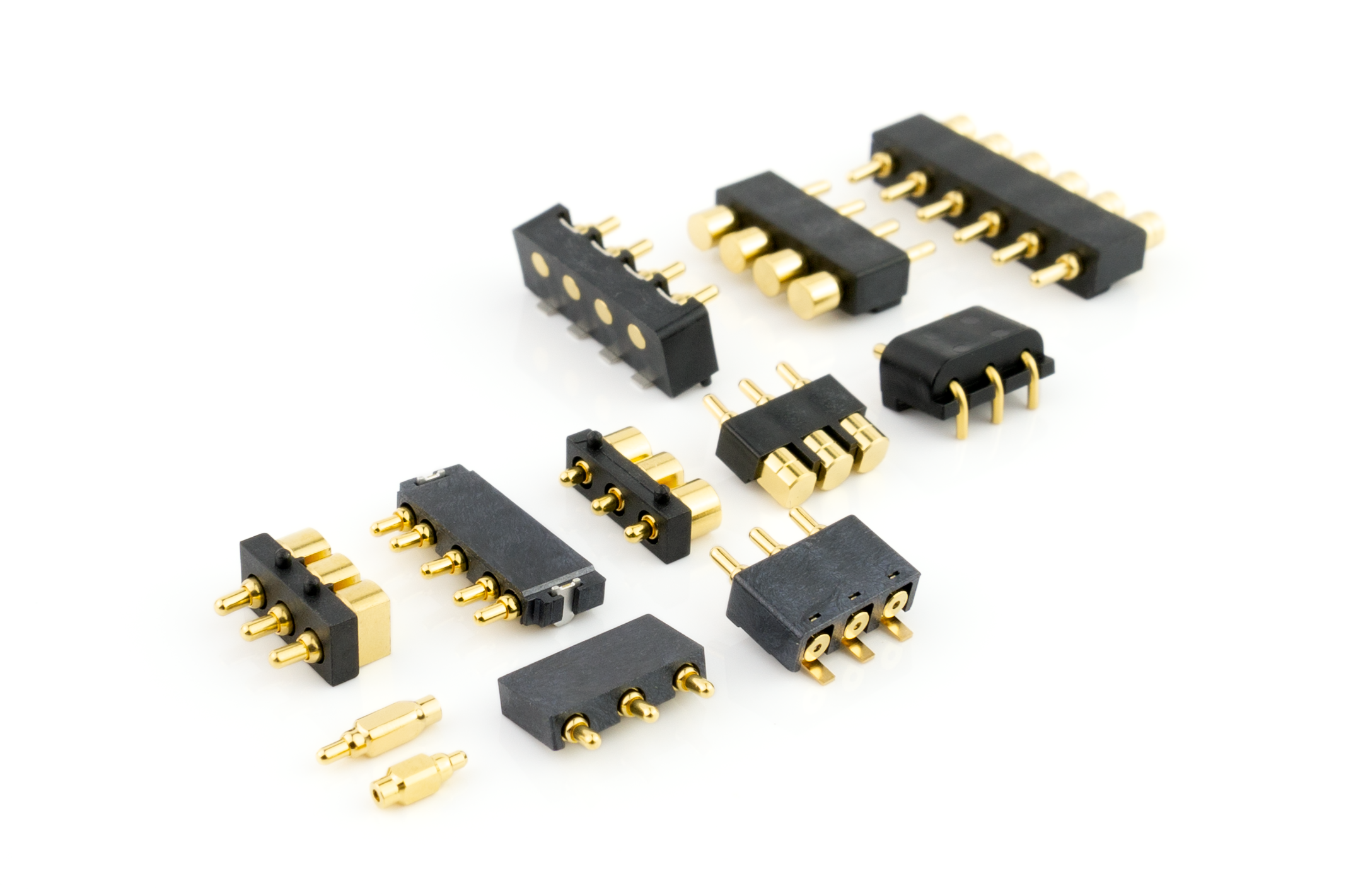

S-J-4214R20-4-20-0000Product image

Right Angle Connector_4Pin_2.0mm Pitch_SMD Right Angle Series

S-J-4214R20-4-20-0000

TechnologyN/AWorking Height-
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins4
Pitch2.0 mmSpring Force1.08N
Rated Current2 ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜＋85℃
Cycle Durability20,000timesSoldering MethodSMD_Right Angle
CAPW/OPackagingTape&Reel
Packaging Quantity1,000pcs
