S-J-4414R07-3-30-0000

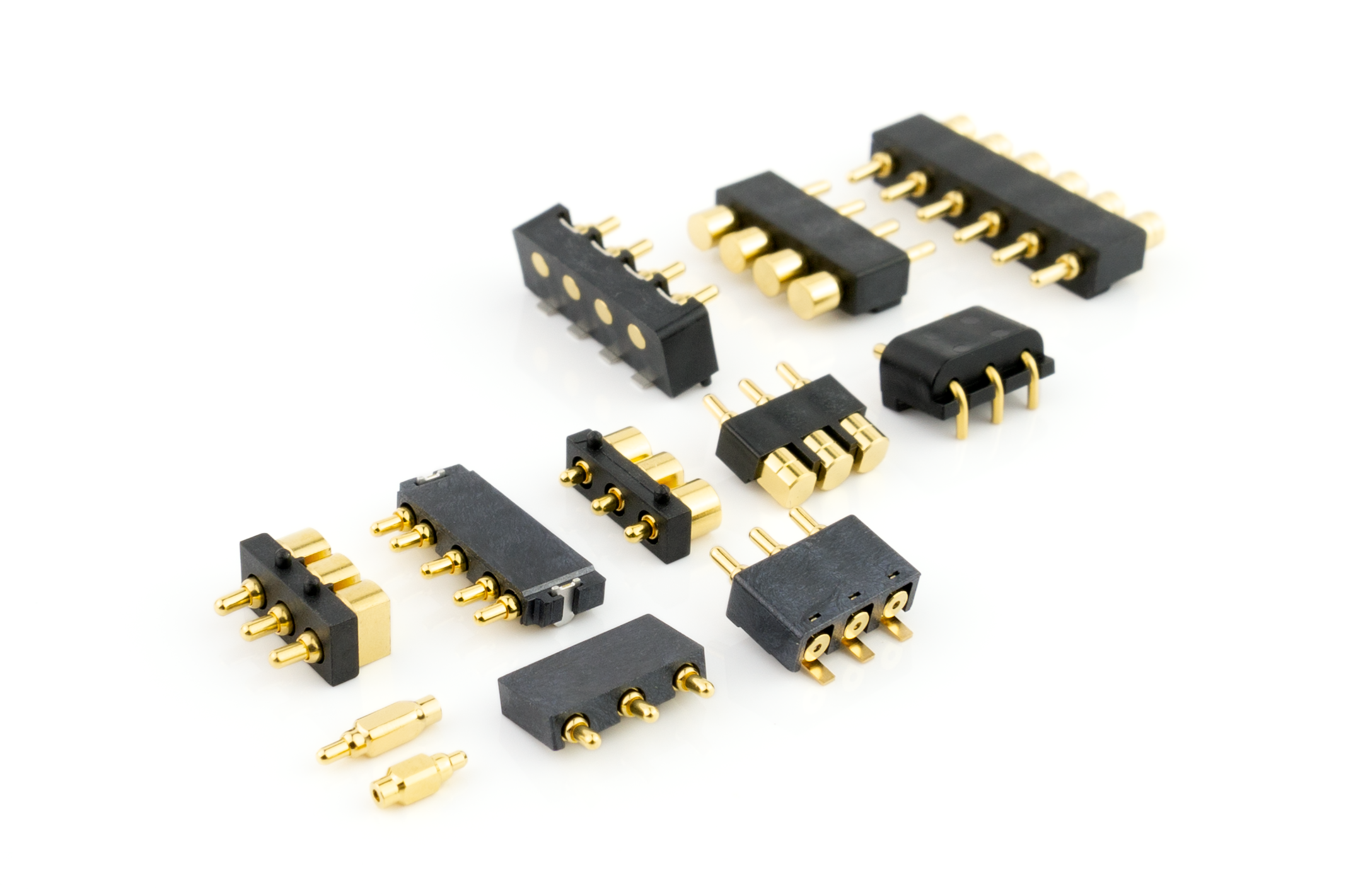

Pogo Pin Connectors
Right Angle Connector

RoHS

S-J-4414R07-3-30-0000Product image

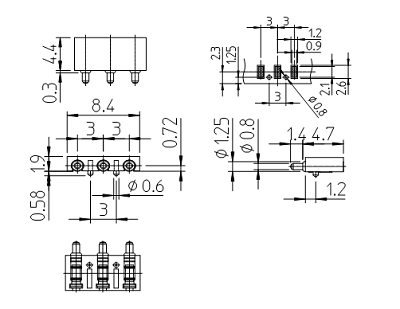

Right Angle Connector_3Pin_3.0mm Pitch_SMD Right Angle Series

TechnologyN/AWorking Height4.75 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins3
Pitch3.0 mmSpring Force1.08 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Right Angle
CAPW/OPackagingTape&Reel
Packaging Quantity1,500pcs
