S-J-5917R12-3-25-0000

SPRING CONNECTOR™/Pogo Pins
Right Angle Connector

RoHS

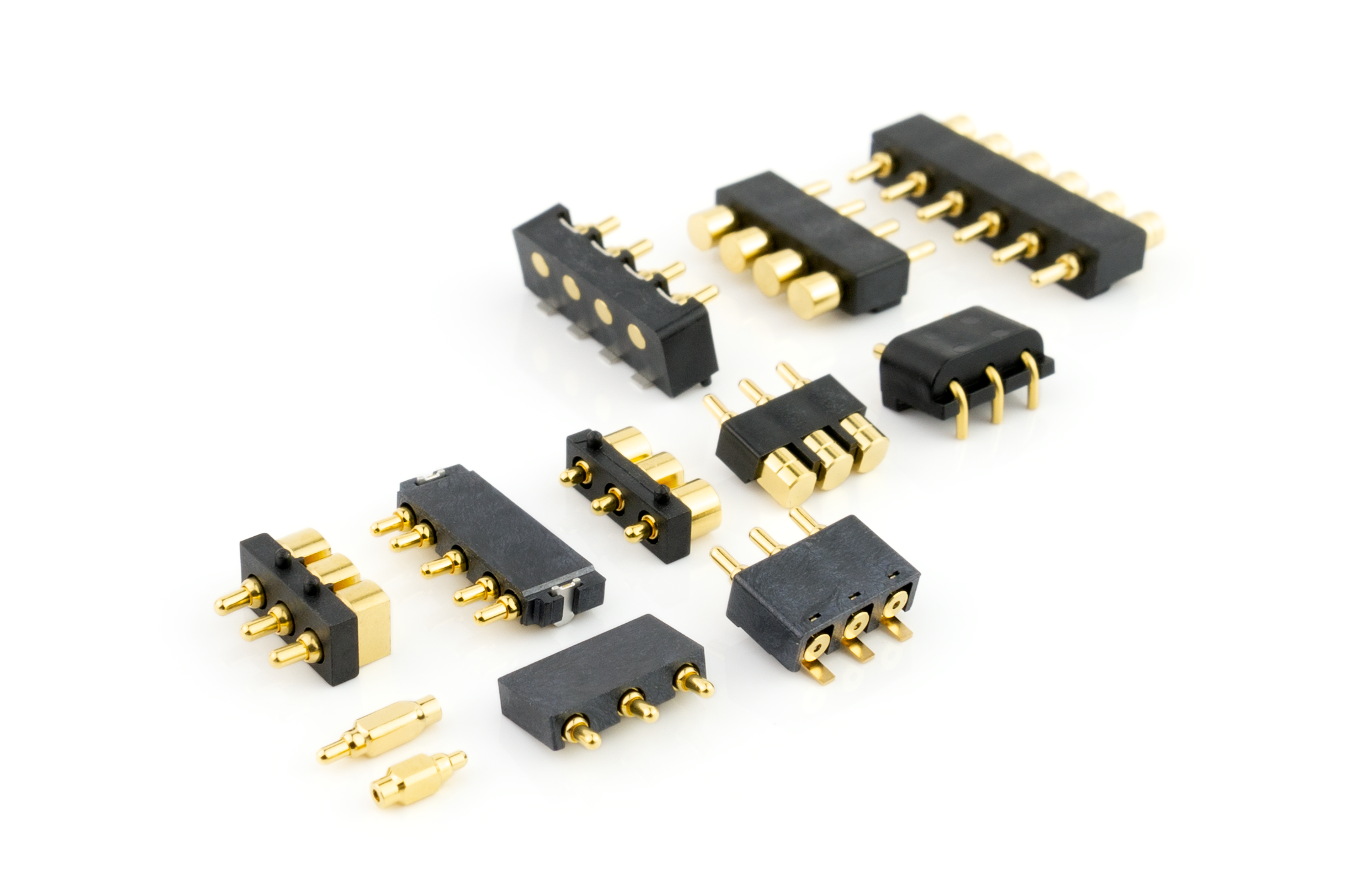

S-J-5917R12-3-25-0000Product image

Right Angle Connector_3Pin_2.5mm Pitch_SMD Right Angle Series

S-J-5917R12-3-25-0000

TechnologyN/APlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins3Pitch2.5 mm
Spring Force1.08NRated Current1A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000times
Soldering MethodSMD_Right AngleCAPW/O
PackagingTape&ReelPackaging Quantity1,000pcs
Note

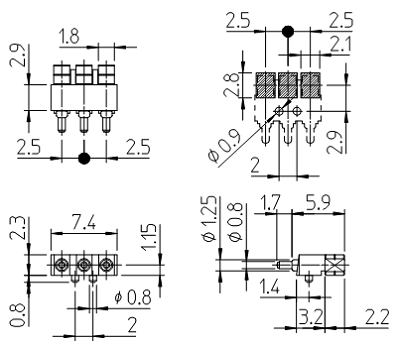

Mating Pad
