S-J-3609R07-1-00-0000

Pogo Pin Connectors
Right Angle Connector

RoHS

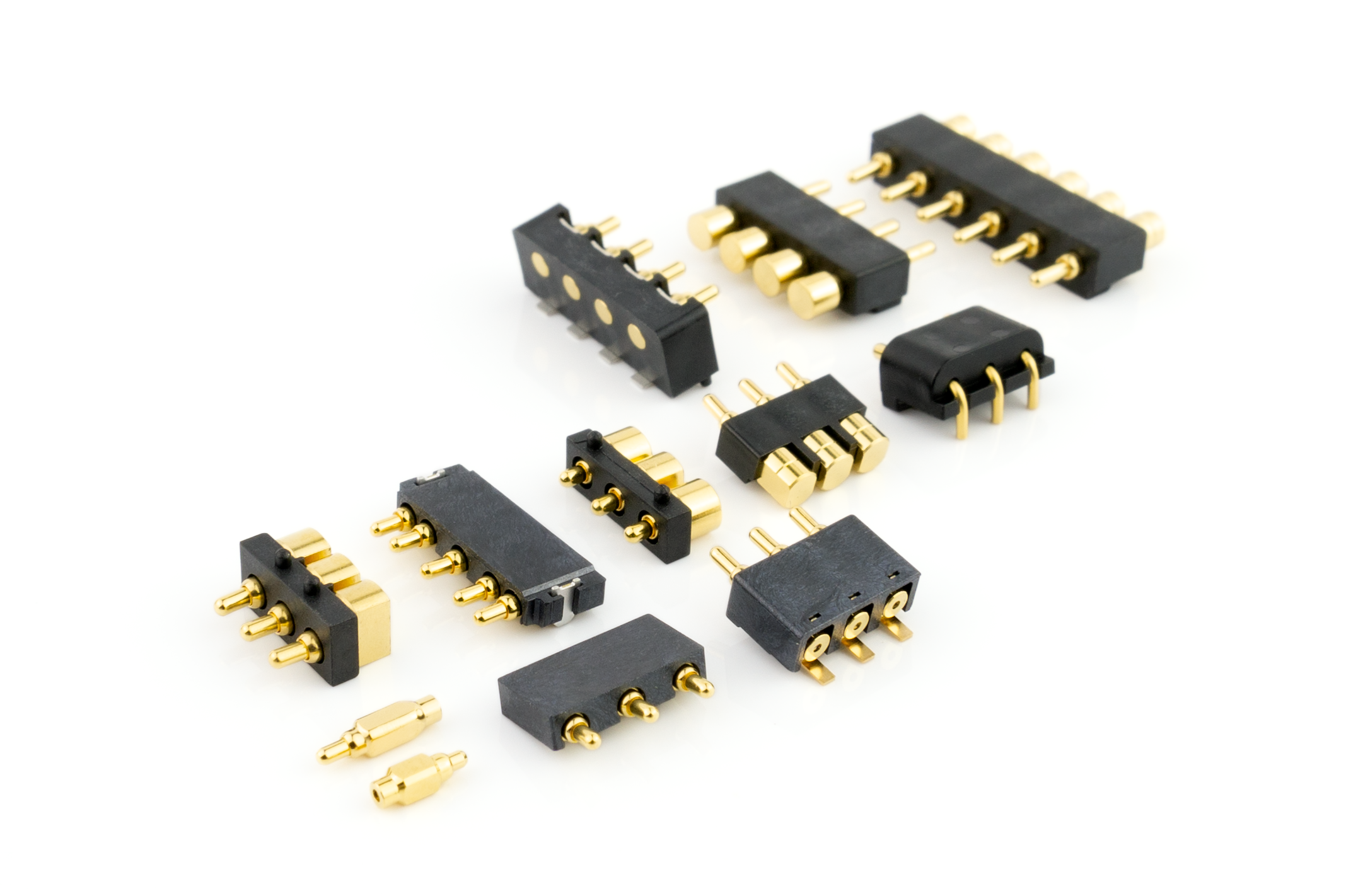

S-J-3609R07-1-00-0000Product image

Right Angle Connector_1Pin_SMD Right Angle Series

TechnologyN/APlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force3.75 mm<1.1 N
4.1 mm>0.4 N
Rated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_Right AngleCAPW/O
PackagingTape&ReelPackaging Quantity8,000pcs
Note
