S-J-8622F-1-00-0000

Pogo Pin Connectors
Floating Connector

RoHS

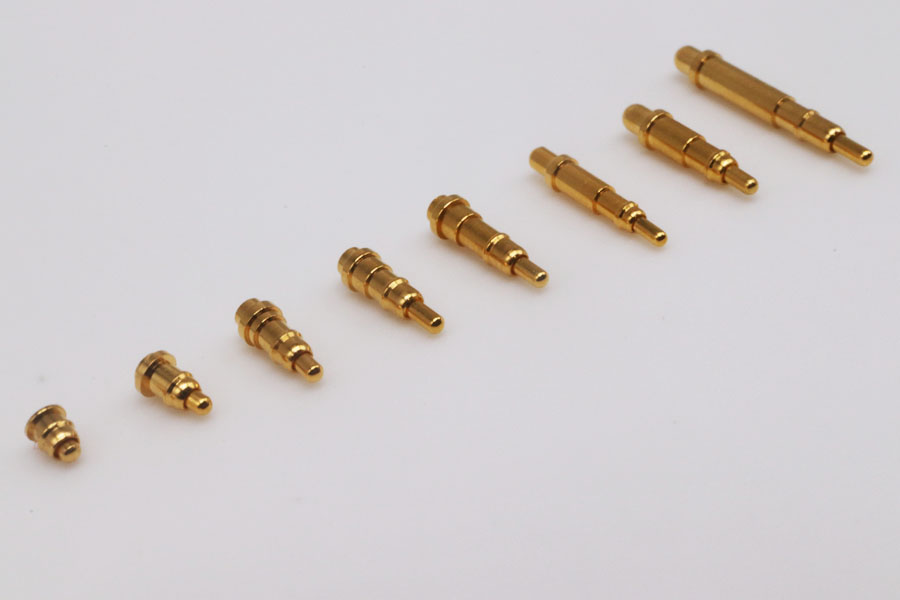

S-J-8622F-1-00-0000Product image

Floating Conncetor_1Pin_Floating Series

S-J-8622F-1-00-0000

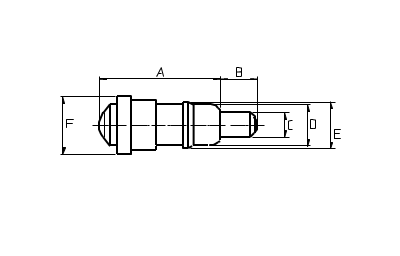

TechnologyN/AA8.6
B2.2C0.9
D1.5E1.7
F2.1Working Range(Reference)9.3〜10.4 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force0.4N MIN〜1.31N MAX
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance100mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodFloating
CAPW/OPackagingBulk
Packaging Quantity5,000pcs
Note

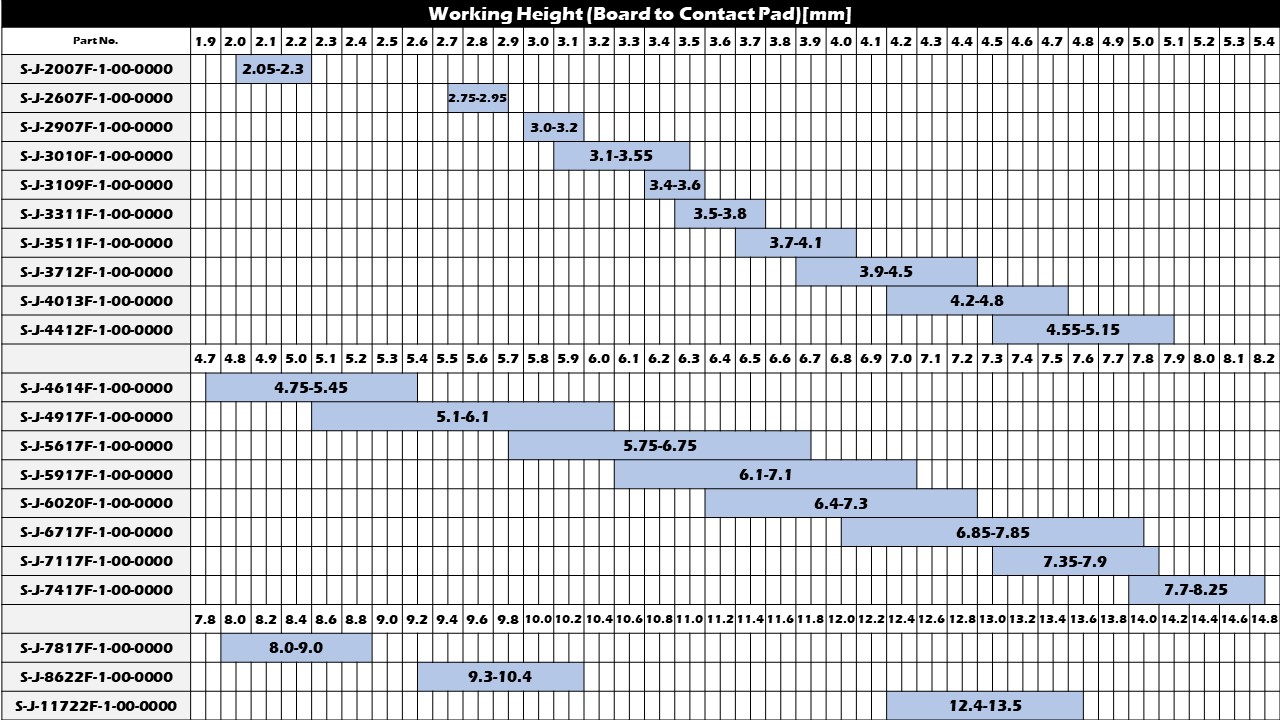

Working Range(Reference)

Working Range(Reference)
